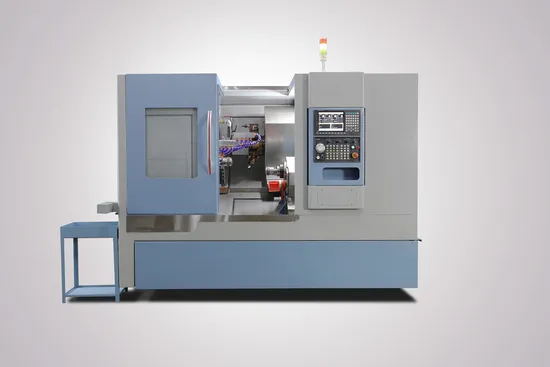

for Alloys and Hard Metals High Speed Dual Spindle Mill-Turn Slant Bed Machine Lathe

Product Description

Two Spindle CNC Lathe Grinder Machine for Metal: Secure the Best Price at our CNC Milling Machining Center!
Product Description
Introducing our cutting-edge Two Spindle CNC Machine Tools, designed with dual independent spindles for unparalleled machining efficiency. These advanced machines are a staple in diverse industries including aerospace, automotive, and textiles, delivering unmatched speed and precision to satisfy even the most rigorous machining requirements.

Project	Name	specification	Unit
Process range	Max bed rotating diameter	Φ400	mm
	Maximum processing length	500	mm
	Maximum processing diameter (shafts)	Φ75 Φ45	mm
	Maximum processing diameter (disk type)	Φ400	mm
X / Z / Y X2 / Z2 / Y2	X / Z / Y axis travel	500 / 600 / 100	mm
	X2 / Z2 / Y2 Axis Travel	400 / 650 / 300	mm
	Repetition accuracy X / Z / Y	±0.003	mm
	Position accuracy	±0.005	mm
Movement	X / Z / Y	30/30/28	mm
	X2 / Z2 / Y2	24/30/18	mm
Screwdriver	X / Z / Y	32/36/40	mm
	X2/Y2/Z2	32/33/25	mm
Rails	X / Z / Y	35/35/30	mm
	X2/Y2/Z2	30/35/25	mm
Turrets	Turrets	12T
	Turning tool specifications	25X25(rectangular)
	Bore cutter specification	Φ25 Φ32	mm
Spindle	Positive/sub spindle nose form	A-26(75) / A2-5(45 ) - A2-4(36)	/
	Through-hole diameter of main/sub spindle	Φ75(Φ45) / Φ36	mm
	Positive/sub spindle speed	3500-4500 / 5000	rpm
Control System	Positive/sub spindle motor power (electric spindle)	18.5 / 7.5	kw
	X / Z / Y axis servo motor	3.0 /2.2 / 2.0	kw
	X2/ Z2 / Y2 axis servo motor	1.8 / 2.0 / 1.0	kw
	Turret power head milling cutter motor/backside shaft end motor	2.0 / 1.0	kw
Dimension	Length/Width/Height	2700 X 1950 X 2050	mm
	Heavy	4.9	T

Detailed Photos
• Simultaneous Machining Power: The dual spindle CNC machine excels by machining two workpieces concurrently, significantly enhancing operational efficiency.
• Precision at its Finest: Engineered for meticulous precision, this tool achieves intricate cutting tasks, ensuring impeccable internal and external precision, roundness, and coaxiality.
• Versatile Processes: Capable of executing a multitude of complex procedures simultaneously, including radial and axial cutting, drilling, tapping, hobbing, scribing, and more.
•Precision Spindle: Offering high precision, exceptional performance, and remarkable stability.
•Taiwanese Craftsmanship: The spindle set features a butterfly spring mechanism for the main shaft grab tool, ensuring seamless engagement with the main shaft taper hole for secure tool holding.
• Efficiency Booster: The low inertia spindle motor reduces acceleration time, enhancing tapping speed and quality. Features direct drive and spindle orientation function for optimal operation.
•Lead Screw
Precision Engineering: All axes utilize C3 grade precision screws with pre-tensioning to counteract temperature fluctuations, ensuring lasting accuracy with repeated positioning.
•Line Track Robust Construction: Utilizing P-grade roller type rails, the three axes deliver high rigidity and load capacity, maintaining stability through multi-directional contact.
Anoher Advantages
Optimal Processing Conditions & Environment: Our factory boasts imported horizontal and vertical machining centers, CNC boring machines, and more, ensuring superior workpiece accuracy and durability. Precision Assured: Cutting-edge detection with laser accuracy testing adheres to stringent German VDI3411 specifications, certifying precision with five tests each.
Advanced Detection MethodsRigorous Quality Control: Each machine undergoes rigorous side processing tests before factory release, guaranteeing readiness for real-world machining and accuracy standards.
Product Sample

Product sample
• CNC Machining Capabilities: Catering to a variety of metal profiles, from aluminum to steel, copper, and beyond. • Versatile Applications: Our CNC Vertical Machine tools are essential across industries such as 3C electronics, rail transportation, aerospace, and liner module guide rail. •d etc.
Packaging & Shipping
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

---
