1325/1530/2030/2040 4 Axis Atc Rotary Woodworking CNC Machine Center Wood Design Machine for Plywood/MDF/Foam/Pep/PP/EVA Cutting Engraving Milling

Product Description

Cheap Price 1530/2030/2040 4 Axis Woodworking CNC Machine Center Wood Designing Machine for Plywood/MDF/Foam/PEP/PP/EVA Cutting Engraving Milling : Rotary + Spindle rotate 0-180 Degree

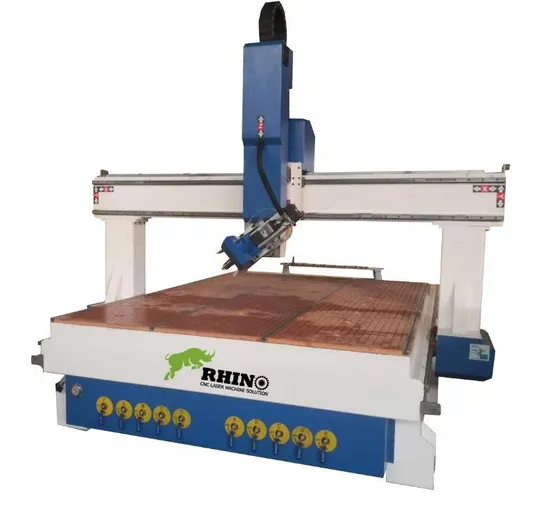

This is Rhino popular 4 axis ATC CNC Router 5X10ft working size with spindle 9.0kw that rotate 0-90 degrees left right+ disc/linear tool changer 12 pieces and vacuum table +t-slot combination.
Its spindle rotate left right 0-90 degrees for mold surface milling.
The automatic linear tool magazine max 20 pcs auto tool changer function,It is with economic Italy ATC 9kw air cooling spindle and professional for wood,aluminum,PVC etc milling and drilling.
Standard size have 4x8ft/5x10ft (1300mmx2500mm/1500mmx3000mm) and more working size can be customized as per detail requirements.
Machine color can be customized also !
Also different working bed size can be customized as per customer requirements !
Product Parameters
Technical Parameters

Model		R-1530ATC-4
Working Area		1500×3000×600mm
Spindle Motor		9.0kw ITALY AIR COOLING SPINDLE ATC
Working Mode		DELTA/YASKAWA SERVO MOTOR DRIVERS 850W
Control System		SYNTEC 60WB CONTROL panl whole set
HSD Cutting saw head		for your option ( don't have in stock)
Drive Mechanism		Gear-wheel on x,y axis
Table Surface		Vacuum table or T-slot extrusions
Frame		wholly steel structure
Motion Positioning Accuracy		± 0.03/300mm
Repositioning Accuracy		± 0.05mm
Max Motion Speed		80,000mm/min
Max Engraving Speed		50,000mm/min
Rotating Speed of Spindle		18000rpm
Z-axis setting		Auto Z origin tool high sensor
Dictate Formate		G code, *.u00, *.mmg, *.plt
Operating Voltage		3phase 380v
Software		Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software
Packing Size		3350×1950×1990mm
Lubrication System		Oil lubrication system
Net weight/ Gross Weight		1227kg/ 1240kg
Noise Level	Racing	LAeep dB(A)72±1
	Engraving	LAeep dB(A)80±2
	Engraving Peak	LAeep dB(C)95
Optional Parts		Dust Collecting System
		Vacuum Table with Air Pump (For XZ-1224,1325)
		Mist Sprayer and flume
		Rotary device with Dia80mm/100mm/200mm
		DSP System w/Portable Control Pad (128MB)

Specifications of CNC Wood Carving Machine R-1530ATC-4
Ø Machine all axis adopt Taiwan HIWIN25 square linear guide rail. the bearing of the lead guide rail is face to face, ong time use precision still high.
Ø German double nut automatically TBI brrand ball screw on Z axis wtih diameter 32mm .
Ø High speed drivers, fast speed and great strength with Japan servo 850W and encoder cable.
Ø No dust oiling structure, guarantee the long term running of the mechanical aspect.
Ø Function of power off and start continue engraving at the break point, can engrave at any place as you like.
Ø Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
Ø Italy HSD/China HQD 9.0KW high power frequency changing air cooled spindle, can process hard materials efficiently like all kinds of wood,plywood,mdf etc Our Advantages
Performance Features:
1. Heavy body : heavy intergral welding structure, 8-10mm steel gantry ( solid and reliable, no distortion, carrying weight, stability).
2. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack.
3. Two motors drive system for Y axis.
4. Professional vacuum system, strong adsorption capacity.
5. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.
6. Machine program is more intelligent with TAIWAN Syntec 60WE system, Super fast tool changing speed so improve working efficiency.
7. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.
8.CE certificate safe and high quality cables that make sure make sure machine run many years no any problem and keep machine very safe still
9. Original electronic parts like leadshine 860H drivers, 450B stepper motors and high quality belts
10. Vacuum table with vacuum pump 7.5kw more convenient to fix materials
11. Fast cutting engraving speed with high precision
12. 24 hours running machine before delivery to make sure 0 mistake in production
13. Fast cutting,milling,engraving speed could be 40m/min , increase working efficiency greatly
14. It is the upgrading cnc router machine with automatic tool changer which is more convenient to use in woodworking business like kitchens,closets,cabinets etc.
15. Pneumatic linear tool changer magazine 12 pieces movement together with X gantry beam, also improve working efficiency of automatica tool changing.
16. Linear HIWIN30 rails and helical rack are in the same surface with new structure to make sure machine will not deform after working for a long time
17. For wood carving & cutting precision could be 0.05mm perfectly because machine structure more stable and heavier than ordinary cnc router in market.
18. Automatic height adjust legs,if your ground is not flat machine can be adjusted itself well
19. Whole dust proof system with pipe 30mm diameter to help you keep a more clean working environment
20. Fast service support, if you have any doubts for this machine in operation we give you 7x24 hours fast reply at anytime
21. Economic price so it is highly popular among customers from Australia .
22. Total rhino ATC CNC Router R-2060ATC is with high technology that increased the stability of working,adn lowered the failure rate,saved energy consumption by 1%,increased production by 3%,inproved the production efficiency and product quality.
Material & Application
Application area of CNC Wood Carving Machine
1. It is used in all kinds of wood FURNITURE AREA like three dimensional wave board processing, cabinet door, solid wood door, craft wood door, paint free door, screen, craft fan window processing, shoeshine machine, game machine cabinet and panel, mahjong table, computer table and panel furniture products auxiliary processing.
2. Machine also can be used in sign and LED field like advertising signs, logo production, acrylic cutting, plastic molding, production of various materials advertising products.
3. Also the mold industry also no problem that for carving copper, aluminum, iron and other metal mold, as well as artificial marble, sandstone, plastic plate, PVC pipe, wood and other non-metal mold.
4. The Other industries like all kinds of large relief and shadow carvings, which are widely used in Arts and crafts industry
Materials can be worked by this machine:
All kinds of wood like solid wood,elm, willow, Redwood, teak, toon, cherry, rosewood, Redwood, white pine, Paulownia, etc.
Other materials like arcylic,plastic,pvc,foam,PE,PP,glass,soft metal also no problem
Machine Packing List
Packing list
1x Engraving machine
1x Control box
1x Parallel port cable 25pin
2x Power cable
1x Tool box and tools
50x Seal pieps
1x CD of manual and software artcam/type3/ucancam etc
10 x Tool holders
1x Dust collector
4x Dust brsh clamps
1x Dust brush
10x ER32 tool chuck
2x Limit sensor OMRON
2X White color tool clamp
Machine detail photos:
1. HQD Italy Air cooling 9.0kw spindle with rotare 0-90 degree left and right

2. Machine is with HSD saw Cutting head tool that can change angle cutting with fast speed and high precision (FOR OPTION)
3. Disc or linear tool changer magazine that can install different tools number 1-20 pcs no problem
4. Optional linear tool changer magazine with 1-20 pcs no problem

5. Machine high quality X axis beam and gantry parts with thickness 12mm steel, long time use still very stable
6. DELTA 850W motors with gear box, before delivery our engineers will inspect all installation very well to make sure no gap in movement.
7.Seperate electronic box with inverter screen control panel that can set spindle rotate manully also.
8. HQD & Italy HSD 9.0KW top quality air cooling ATC spindle with voltage 220v/380v
ISO30 chuck more stable and strength
9. High precision M2 rack pino with HIWIN 20 square rail for transmission to make sure cutting engraving precision better.
10. Auto Tool sensor is avaialbe
11. High quality safe cables with all DELTA servo drivers installed in the seperately control box, we also use the big power transformer to supply stable power for all drivers to make sure machine working well .
12. Vacuum table with t-slot combination more convenient in operation and 7.5kw air cooling vacuum pump with noise reducer very useful.
This machine standard specification is T-SLOT working table and vacuum table for option
13. 10 pieces air jack along with x axis and y axis to help customer location materials more easily and proper !
Samples
Machine cutting and engraving samples:
Packaging & Shipping
Machine Package:
Rhino CNC Machine package process:
1. Firstly machines are inspected by engineers make sure no any problem then we have special workers who are professional for machine pacakge. We use plastic film cover machnes to avoid moisture on the sea then we use strong stap to tight machine all components well like gantry,table,dust collector and control panel etc.
2.Then we will move it on the plywood bottom bracket.
3.Setting it in the proper location then use air nail to fix machine legs well on the bracket. It will take about 1-2 hours then we make a full package with plywood box.
4.Finally we use steel strap tight the whole plywood box and print shipping mark and something else as per customer requirement on outside of box. Now the whole process is finished well and it will take 2-3 hours to package it perfectly.
After Sales Service
Our Services(why choose Rhino cnc)
Guarantee & After Sales Service:
1) Two years warranty under machine normal use we supply maintenance for life freely.
2) 24 hours technical support by phone, email ,MSN,Skype or Remote.
3)Free training to make sure you can master the operation of machine,also we will send manual,instruction,teach video with machine together.
4)English vesion operation manual,popular and easy to understand and handle

Company Profile
Company Information
Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 5-9 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications
FAQ:
Question 1: I'm interested in cnc router machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?

Question 2: What's the delivery cost and time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: What is the design software?
Answer: We give free Type3 and Artcam software,you can also use your own software,as long as it can transfer into G code .
Questions 4: What is the payment terms:
Answer: We support bank tt, LC, Western Union etc all kinds of payment way, 30% in advance and balance payment before machine delivery
Questions 5: What is the warranty time ?
Answer: Our whole machine have 3 years warranty for free and long life time service. Spindle, motor etc electronic parts have 1 years warranty for free.
Welcome to contact us if you have more requirements for above machine!
Also we can produce the cnc router according to your detail requirements!

---
