Basic Info.
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Transport Package
Carton and Pallet
Specification
CE, RoHS, ISO
Origin
Changzhou, Jiangsu, China
Packaging & Delivery
Package Size
25.00cm * 15.00cm * 15.00cm
Package Gross Weight
3.500kg
Product Description

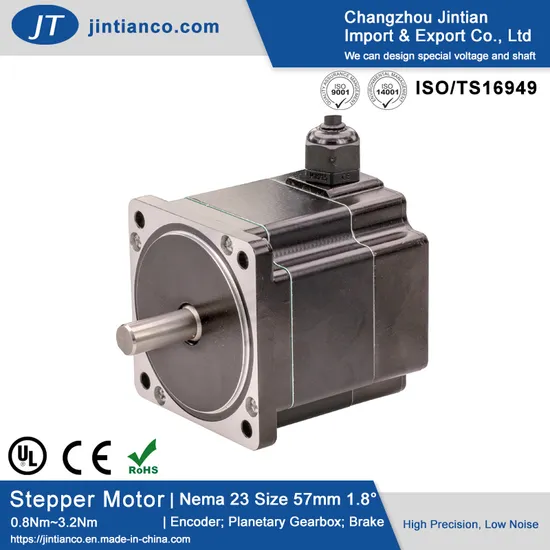

Description:
Step angel:1.8°/0.9°
Holding torque:0.8-3.2N.m/0.5-1.5N.m
Motor size: NEMA23 57mm
Options:Brake,Encoder,Plantary gear box
CE and RoHS approved
Applications
Use for robots stepper motor, electric automatic equipment stepping motor, medical instrument stepping motor, advertisement instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor,CNC router stepper motor,3D Printer stepper motor.
| nema23, 1.8 degree, IP65, 2 phase |
| Model Number | Holding torque | Rated Cuttent | Wiring Resisitance | Winding Inductance | Rotor Inertia | Protection level | Motor Weight |
| Single/Dual Shaft | N.m min | A/Phase | Ω/Phase @20ºC | Mh/Phase | g.cm² | IPXX | kg |
| JT255B40A | 1.2 | 4 | 0.45 | 1.4 | 280 | IP65 | 1.5 |
| JT257B50A | 2 | 5 | 0.37 | 1.8 | 480 | 2.4 |
| * Length customizable |
>>
