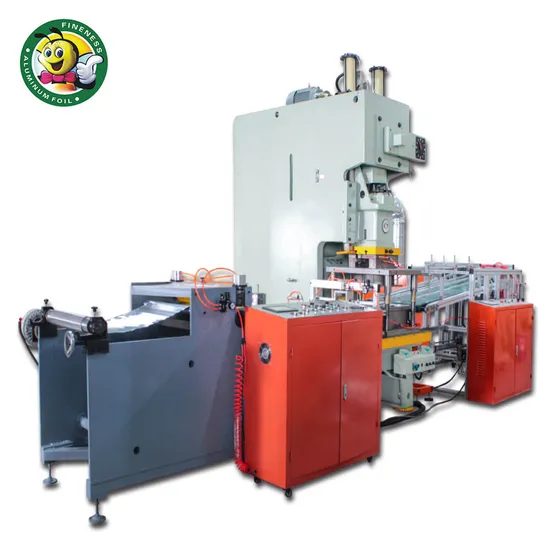

45t Full Automatic Take Away Aluminum Foil Container Making Machine

Product Description

Product Description

AF-45AT and AF-63AT:
The design of aluminum foil surface oiling function is more reasonable, more fuel-saving and more hygienic.
The taper tension controller is used to realize automatic tension control, automatic adjustment and no wrinkling.
Servo feeding system is adopted to realize high feeding accuracy, more stable and wider feeding.
The press is stronger, the net weight of AF-45T press is 5.5 tons, the net weight of AF-63T press is 8.5t, which is more durable and stable.
The latest customized design to achieve 10 minutes of mold replacement, faster and easier.
The electric mold adjusting system is adopted to realize the automatic adjustment of mold height.
The lubrication system of automatic circulation is adopted for all machine lubrication.
The latest model MITSUBISHI PLC, 13 Inch Touch screen, intelligence for production data storage and call, and faster completion of the replacement of mold debugging tasks.
AF-63AT: The electric mold adjusting system, Mobile worktable (Quick Mold Change), Wet press clutch (low noise, zero wear), Safe operation: infrared safety light screen (optional).

Quick Detail:
1.Feeding, punching, lubrication, scrap collecting, container collecting automatically.
2.Very reliable as the controlling system adopts Siemens CPU 224 programmable logic controller (PLC).
3.It is integration of Gas & Electrical, centralized control, so feeding length, speed and other parameters are easy to set.
4.Manual setting of the feeding length from 0 to 999mm by yourself.
5.With automatic lubrication system and material could lubricate automatically.
6.With ABB transformer or Siemens from German transformer, speed could be adjusted.
7.According to Europe standard, with cover to keep the press.
8.With Photoelectric Protection system to keep operator safety(Choice allcollation)
The features are feeding accuracy, coating even, saving material, high accuracy, neat appearance, small size, easy to install, operate,
maintain, little noise, as a result, it is the ideal equipment for aluminum containers & hardware products and so on.
Machine Process:
Aluminum Foil Raw Material---Feeding---Lubrication---Punching (Mould)---
Scrap Collecting---Products Collected---By hands or Stacker---Packaging.
Feeding Machine:
(Technical data just reference, the exact data will change according to container size ) Product Parameters

Max Pressure	450KN
Max Material Width	700mm
Max Material Diameter	600mm
Feeding Length	20-999mm
Feeding Machine Power	11kw
Feeding Machine Weight	1000kg
Slide Stroke	100-260mm
Mould Loading Height	270-400mm
Press Power	5.5kw
Working Table	1000*1000mm
Press Weight	3800-4500kg
Press Diemension	1800*2300*1700

It adopts the electrical stepping system (can be replaced by PLC controller as customer's requirement) to realize the function of
positive and negative rotary of motor. with the adoption of double electromagnetism valves and pressure relay, the operational
safety is guaranteed. The frames of equipments are made of the holistic steel which has the advantages of high rigidity and
reasonable structure. Thanks to inside installation of the driving system, the layout of the equipment is compact. It adopts the
independent removable control panel is colorful, convenient and has nice layout. Also, the production line adopts the independent
removable control panel which is colorful, convenient and has nice layout.
We have much experience in this line. We have exported to Italy, Greece, Russia, the Middle East, etc. we have passed ISO9001:
2000, HaccpAAA. Our aluminum foil related products have passed FDA, SGS, TUV. Our machines passed CE.With advanced
equipments, superior qualityadministers and toping working team, we can offer our customers high quality products and the finest
services. We are looking forward to establishing long-term business relations with clients
