Intellingent Rock Board Stone Round Edge Polygon Machine

Product Description

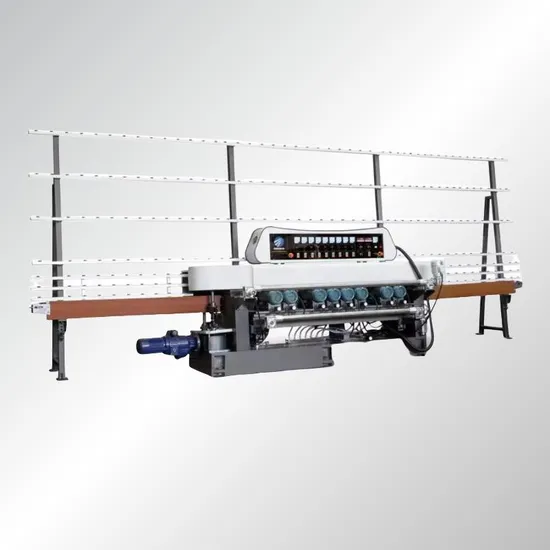

Stone Edge polishing Machine
JY 10-45°Swing angle rock board / stone edging machine

Product introduction: The machine's variable frequency speed regulation feed is suitable for the bottom edge, 45 °, and swing angle of the flat rock slabs of different sizes and thicknesses. Wait for the fine rough grinding and polishing to be completed at one time. After polishing, the surface is close to the smoothness of the stone matrix. When adjusting different processing thicknesses (refer to the digital display table on the front beam for adjustment), it has the advantages of advanced structure, high accuracy, easy operation, and continuous processing of the same thickness. The necessary processing equipment for deep processing of boards


The main technical parameters
1,Voltage:380V/50HZ
2,Process min glass size:70X70 mm
3,glass thickness:3~60mm
4,Total power:27Kw
5,Feeding speed:0.7-5 m/min
6,Oversize: 7200 mm×1000 mm×2500mm
7,Weight:3300kg
8,Workbench:750mm

Grinding wheel distribution and motor grinding wheel sequence configuration

1	2	3	4	5	6	7	8	9	10
φ150	φ150	φ150	φ150	φ150	φ150	φ150	φ150	φ150	φ150
3kw	3kw	3kw	3kw	2.2kw	2.2kw	3kw	3kw	3kw	3kw
diamond wheel	Polishing wheels	Polishing wheels	Polishing wheels	Polishing wheels	Polishing wheels	Saw blade	diamond wheel	diamond wheel	Polishing wheels

Detail 1
Swing angle function: Rear chamfering motor swing angle range: 10 ° -45 ° (refers to the angle between the motor axis and the horizontal plane)
Detail 2
Saw blade: Adopt high-quality rock board / stone special saw blade, the sharpness is tough and does not collapse.
Frequency conversion motor: The motor adopts frequency conversion intelligent adjustment, stable speed change, and panel operation adjustment.
Processing effect chart

Packing & Loading Pictures
Please feel free to contact us, looking forward to be your partners!

---
