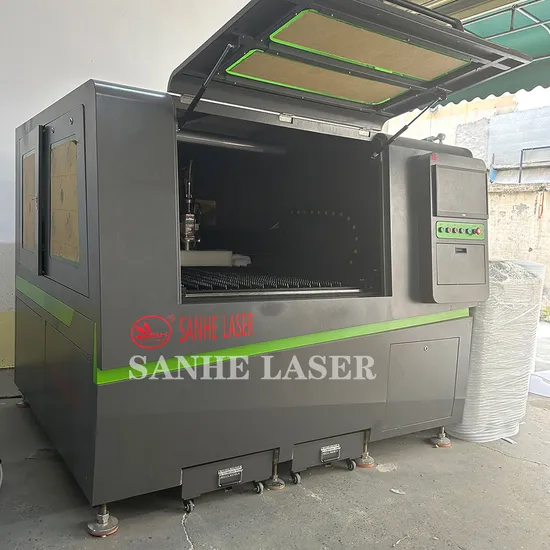

High-Precision Fiber Laser Cutting Machine, Laser Precision Cutting Within 1mm, The Cutting Surface Is Bright and Burr-Free

Product Description

Product Description

Detailed Photos
High-precision linear motor module, frictionless, energy-saving, efficient and stable in operation, with transmission frequency accuracy up to 0.5 micron.
Adapt to standard QBH
Three protective mirrors protect against dust
Stable operation, small size, light weight, suitable for precision cutting.
Features marble countertops and honeycomb blade platform.
The marble platform has good overall rigidity and high strength. It can ensure the stability of the fuselage structure.
Flat countertop. Reduce the frequency of jitter and ensure stable product placement. Greatly improve precision
Intelligent CNC software system, rich functional modules, simple and easy to operate, can be effectively used in laser cutting processing of various materials.
Product Parameters

Model	3HE-MF1000W	3HE-MF2000W
Laser Power	1000W	2000W
Max. Cutting Thickness	12 mm	20 mm
Laser Type	Imported Fiber Laser
Laser Technology	Germany Technology
Working area	800*800 mm
X axis Stroke	800mm
Y axis Stroke	800 mm
Z axis Stroke	150 mm
Transmission way	Imported ball screw
Table-driven system	Japanese Panasonic Servo motor & Driver
Focus Method	Dynamic Following and Automatic Adjust Focus
Location precision	≤±0.05 mm
Re-location precision	±0.02 mm
Max. moving speed	100m/min
Laser wavelength	1070nm
Minimum line width	≤0.1mm
Supporting Format	PLT, DXF, BMP, AI
Power demand	380V/50HZ
Worktable max. load	1000 Kg
Dimension (L*W*H)	4000mmX3000mmX2000mm
Control Method	offline movement Control
Control software	SANHE Laser Professional Laser Cutting Software

Packaging & Shipping
Company Profile
Contact us: Dongguan Sanhe Laser Tech Co.,LTD.
