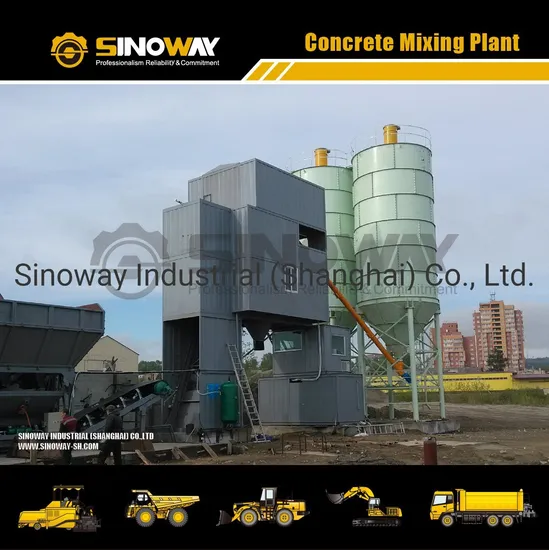

120 M3/H Ready Mix Concrete Mixing Plant, Modular Concrete Batching Plant

Product Description

The concrete mixing plant is a combinational device used to mix concrete in centralized. There are many different types and components of the concrete mixing plants, the basic structure includes: Feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc. ). They are used to transport, feed, store, batch, weigh, mix and discharge the concrete raw materials: Cement, water, sand, crushed stone, admixture and additive.
Sinoway treat Service as a significant segment in our value chain, from the moment you get in touch with Sinoway, our commitment to service is a complete guarantee that we will make every effort to be there for you. That is our pledge to you. We wish to not just satisfy but surpass the expectations of our customers.
Technical Specification

Model		SWCBP600	SWCBP900	SWCBP1200	SWCBP1800	SWCBP2000
Productivity (m3/h)		50	75	120	150	200
Mixer	Type	JS1000	JS1500	JS2000	JS3000	JS4000
	Power(kW)	2×22	2×30	2×37	2×55	2×75
	Exceeding Capacity (m³ )	1	1.5	2	3	4
	Grain Size (mm)	≤60	≤80	≤80	≤80	≤80
Batcher	Hopper Capacity (m³)	12	15	20	30	40
	Hopper Quantity	3	4	4	4	4
Conveyor Capacity (t/h)		400	400	500	600	600
Weighing Scope Accuracy	Aggregate (kg)	2500±2%	3500±2%	4500±2%	7000±2%	2×4500±2%
	Cement (kg)	600±1%	900±1%	1200±1%	1800±1%	2400±1%
	Cols ash (kg)	200±1%	300±1%	600±1%	800±1%	1000±1%
	Water (kg)	300±1%	400±1%	600±1%	800±1%	1000±1%
	Additive (kg)	30±1%	30±1%	40±1%	50±1%	50±1%
Total Power (kW)		99	120	142	190	240
Unloading Height (m)		≥3.9	≥3.9	≥3.9	≥3.9	≥3.9

---
