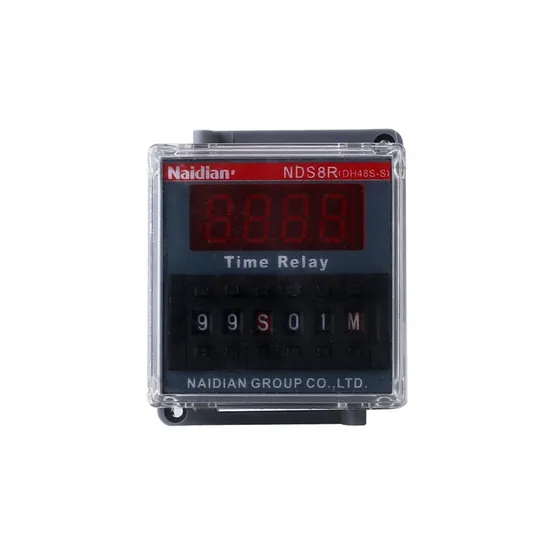

Naidian Factory OEM ODM 0.1s-99h Timer Relay Dh48s Double Circles Delay Time

Product Description

Product Description
Application
NDS8-R(DH48S-S) Digital time relay is applicable in the circuit of up to AC380V 50Hz or DC24V as delay part to connect and disconnect the circuit according to the preset time and controlling method.
Product Parameters

Rated voltage	50Hz/60Hz AC24V , AC36V , AC110V, AC220V , AC380V DC24V . 85%-110% of rated voltage.
Time range	0.1s-99H
Operation method	Cycle delay
Additional function	With reset and pause function.
Display component	LED
Contact capacity	AC220V 5A (resistance)
Contact arrangement	SPDT
Power consumption	<4.5w
Mechanical life	1×106
Electricity life	1×105
Ambient temperature	-5-50ºC
Outline size	52(L)×114(W) ×104(H)
Installation type	Screw mounting on the panel, DIN rail mounting with Socket

Dimension
NoticePlease preset the delaying time before power on due to the time relay possesses the function of record, the interval time of restarting relay ≥0.5s.Please set the dial to the time you want, connect the power source, then the LED screen starts to timing from 0,when reach up to preset time, delay contact change to stop timing to complete timing control.Reset function: Please connect the terminal 1,3 at anytime, the relay recover to the initial state.Pause function: Please connect the terminal 1,4 at anytime, then stopping timing and keep the current time ,when disconnect the terminal ,then the relay continue to timing.Please adopt the shield lead line, when the lead line connected the reset terminal or connected the pause terminal are too long under the environment of high electric filed. Don't input the voltage or earth to the reset terminal(1,3) ,pause terminal (1,4). Unless damage the relay.Certifications
Company Profile
Established in 1989, Naidian Group Co., Ltd. is located in Liushi where is regarded as low voltage electrical equipment production base of China, specializing in manufacturing and selling industrial electronic products. At the same time, we are a pluralistic modern enterprise integrating scientific research, trade, finance and investment together.
We mainly produce all types of relays, such as time relay, miniature relay, general purpose relay, PCB relay, liquid level relay, solid state relay, high power relay, motor protector, and counter, which currently sell well in domestic market, and are exported to South America, the Mid East, Southeast Asia, Europe, Africa and other regions around the world. We have received praises from customers.
ISO9001 quality management system has been strictly operated in our corporation. In addition, some products have passed the attestation of CCC, CE, and UL. Our company also has introduced advanced equipment for constantly research and development of new products.
Reliable quality and excellent service have contributed to our company's good reputation. We will insist on providing better service for our customers and others who concern about us and creating mutual benefits with you.
Production workflow
FAQ
1. who are we?
We are based in Zhejiang, China, start from 1989,sell to Domestic Market(80.00%),Mid East(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electromagnetic miniature relay,Time control relay,Electrical network protection relay
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese

---
