Stone Cutting and Edge Profiling Polishing Machine for Marble Granite Quartz Kitchen Countertops Sink Cut out with CNC Control Router in Europe Market

Product Description

Sink Cutting Machine

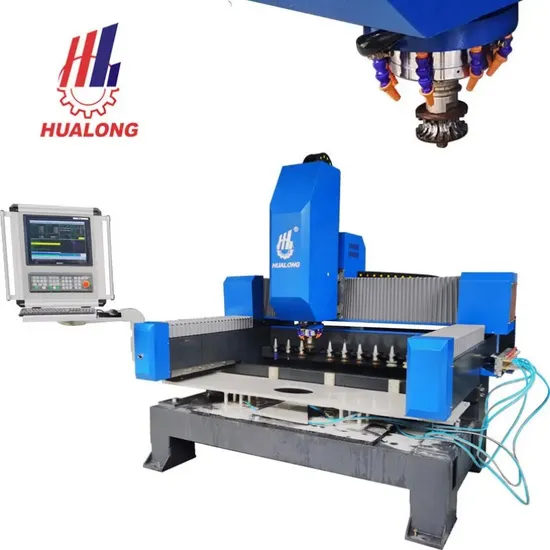

HLNCm-1308 Plus is a small 3 axis CNC work center with auto-tool change for stone countertop sink cutting, profiling and polishing. It doesn't take up much space but will be a work-horse for your team and a great way to improve efficiency in your fabrication operation. It's modern and simple to use thanks to Hualong experience in making stone machines for more than 30 years. It's one of the best CNC machine on the market for countertop processing.
Main Features
* Full CNC capabilities: 3 axis * Easy to program and operate * High performance servo motors
* High precision (ball screws)
* Smooth movements of the axes
* User-friendly and fast learning curve
* Space saving
* Open frame (no-limits for the length of the slab)
* Easy and lowered maintenance
* Workpiece can be locked securely in two ways, by pneumatic locking pistons with movable working bench or by vacuum suction cups at optional.

Stone Processing Types
* cut-out by finger bit
* shaping and polishing
* undermount sink cut out
* faucet holes
* recessed drainer/drain grooves
* engraving & writing

TECHNICAL DATA FOR HLNCm-1308 Plus
Working Area	1400 x 900 mm
Z-axis Stroke	370 mm
Tool Holder Tang	BT40
Tool Pickup Station	11 pcs
Command	G code
Max. X-axis and Y-axis Speed	26000 mm/min
Max. Z-axis Speed	4000 mm/min
Spindle Rotating Speed	0-8000 rpm/min
Power of Main Motor	7.5 kw
Power of Oil Cooling System	0.95 kw
Power of Vacuum System	2.3 kw
Dimensions (LxWxH)	2800 x 2200 x 2400 mm
Working Voltage	AC380V/50HZ

WHAT WILL YOU CREATE? * countertops
* bas-reliefs
* funeral tablets
* commemorative plates
* decoration
Detailed Images

Control system -- CNC
Syntec CNC system and Italian softwear with touch screen for easy setting and automatic processing.
It can make machining job easy, perfect and high efficient.


Servo Motor & Driver
Brand: JMC
servo motor with intergrated drives, designed to achieve total digital integration with CNC system, creates a reliable controlling power for X, Y and Z axises.

Linear Square Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on 3 axises for high precision of cutting and long lifesp
3 Axis Structure:
Z axis -- Balls crew
X/Y aixis -- Rack & Gear

Electrical Companents
Brand: Siemens, etc.
Quality electrical companents used to ensure stable performance.
All electrical components are housed and wired in an electrical cabinet.This allows for easy access and service when needed. All
wiring is labeled so that customers can easily browse the cabinet when they need service

Auto Lubricating System
Brand: Yong Sheng
Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.

Tools Station
Quanitity: 11 pcs 11 storage positions are equipped for the processing tools.
The tools can be changed automatically as need.
