China Xuzhou Manufacture Hoist Machinery Xct80L5 80t Truck Crane

Product Description

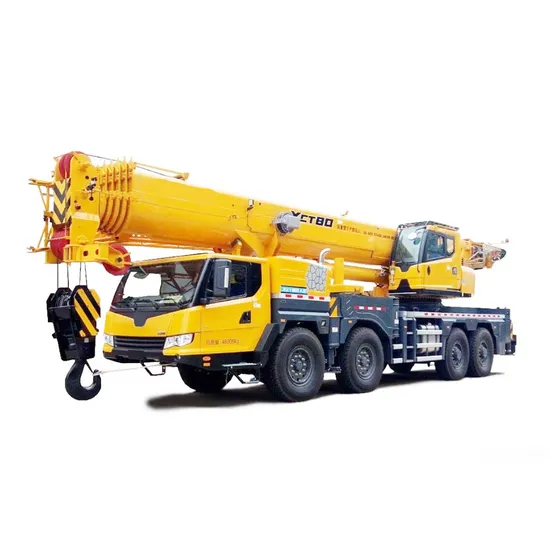

Product Description XCT80L5 truck crane is widely used for the lifting operations in Oilfields, mines, general engineering projects, such as construction site, urban renewal, communication and transportation, sea ports, bridge construction, desert, and complex working environments.

Product Parameters

SPECIFICATION OF XCT80L5 TRUCK CRANE 80T
Item	Unit	Parameter Value
Model	-	XCT80L5
Operation Performance Parameter
Max. lifting capacity	t	80
Approach angle	°	20
Departure angle	°	14
Min. turning diameter	m	≤20
Minimum ground clearance	mm	335
Fuel consumption for 100km	L	45
Fully extended boom	m	78
Fully extended boom+jib	m	85
Engine Parameter
Model	-	WP10H400E62
Engine rated power	kw	294/1900
Engine rated torque	kN.m	1900/1200-1300
Dimension Parameter
Crane Full Dimension(L×W×H)	mm	14970*2800*3990
Wheel base	mm	1500+4200+1420+1505
Track	mm	2562/2268/2468
Boom length	mm	12.7
Speed Parameter
Max. travel speed	km/h	80
Minimum stable running speed	km/h	1.7~3
Max. slewing speed	r/min	≥2.5
Turning radius at turntable tail	mm	4560
Max. lifting torque	kN·m	3528
Max. gradeability	%	45
Weight Parameter
Total weight in travel	kg	33000
Axle load	kg	2000+4000+1500

Detailed Photos
Company Profile
HOKA VEHICLE is located in Shanghai, which is a financial, trade and shipping center in China. All these give our company an obvious superiority in trade, transportation and material flow.
With the professional team, first class design, production experience and market capacity, HOKA VEHICLE has exported and delivered more than 5, 000 units Construction Machinery to countries across Africa Middle East, Southeast Asia and South America.Our main products cover more than 11 series, ranging from Hoisting Machinery, Building Machinery, Earthmoving Machinery, Concrete Machinery,Road Machinery,Logistics Machinery, Trucks, Drilling Machinery, Mining Machinery and all other kinds of Construction Machinery.
