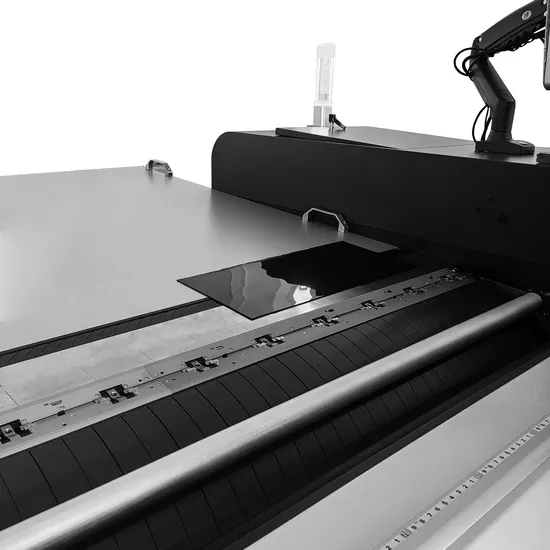

Versatile Digital Flexo Plate Machine for 0.11 mm to 7 mm Thickness

Product Description

High definition digital flexo imager
Max. size	2032x1270 mm(80x50 in)
Min. size	350x200 mm(14x8 in)
Plate type	Digital flexo
Plate thickness	0.11 mm ~ 7 mm
Automatic detection of thick plate	Standard
Plate loading	Manual mounting, Auto loading
Resolution	4000 dpi (Upgradeable 8000 dpi) 2400/4800 dpi (Upgradeable 9600 dpi) 2540/5080 dpi
Digital flexo plate making speed	2400 dpi 6.61 m2/h 4800 dpi 6.42 m2/h 9600 dpi 3.21 m2/h Net weight:2800 kg
Power supply	Single-phase 220 V ± 5% 50/60 Hz
Rated power	8.8 kW
Dimensions	(L x W x H) 2820 × 1400 × 1125 mm
External air pump	size:(L x W x H)1110×680×770 mm weight:190 kg
Environment	18~28ºC; RH: 40%~60%

The HDI-2000 series stands as the premier selection for those in pursuit of excellence, catering specifically to high-volume flexo trade shops and corrugated converters who demand nothing short of perfection.
As a groundbreaking achievement, the HDI-2000 holds the distinction of being China's pioneering full-size flexo imager. It boasts compatibility with all 50 x 80 size flexo plates, thus ensuring optimal plate utilization and maximizing efficiency in every operation.
Integrated with state-of-the-art Internet technology, the HDI-2000 represents a pinnacle of intelligent plate-making equipment globally. It provides seamless access to crucial data such as equipment operating status, startup efficiency, working conditions, and maintenance alerts. This feature elevates it to a vital component within the landscape of the smart factory.Model List

Model	Max. size	Min. size
HDI-1200H	1000x1270 mm(39x50 in)	350x200 mm(14x8 in)
HDI-1600H	1524x1270 mm(60x50 in)	350x200 mm(14x8 in)
HDI-2000H	2032x1270 mm(80×50 in)	350x200 mm(14×8 in)

---
