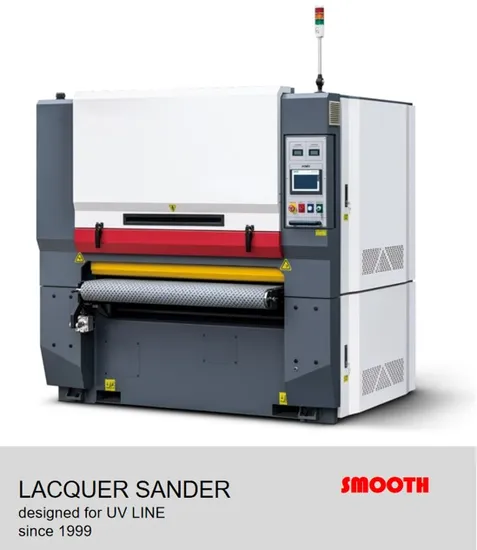

Lacquer Sander 700mm 1300mm 1350mm Wide Belt Sander Sanding Woodworking Machine

Product Description

Veneer Sanding Machine/Lacquer Sander/ Wide Belt Sander/Drum Sander
Model SQG1300
Configuration
Sanding Unit #1: Rubber Roller
Sanding Unit #2: Rubber Roller

Electrical Parts
Main motors with thermal relay protection; SIMENS PLC MCGS/ SIMENS Touch screen. Main bearing: NSK/TR Pneumatic components AIRTAC (TAIWAN) Optoelctronic switch: BANNER/AB (USA) Safety Protection
3-color caution light; Emergency stop button on both in-feed and out-feed ends; Belt error/pressure error/ feeding error/ protection. Product Parameters

MAX. WORKING WIDTH:	1300mm
MIN. WORKING LENGTH:	270MM
WORKING THICKNESS:	3-100MM
FEEDING SPEED:	6-30M/MIN(FREQUENCY CNOTROL)
MACHINE DIMENSION:	2150*2175*2130mm
MACHINE WEIGHT:	3600Kg

1# SANDING UNIT
·Type: Rubber Roller
·Dia : Φ215mm-300mm
·Motor: 11kw -15kw
·Belt Speed : 3-12m/sec (frequency control)
·Adhesive Belt Size:1390*2100mm
2# SANDING UNIT
·Type: Rubber Roller
·Dia : Φ215mm-300mm
·Motor: 11kw -15kw
·Belt Speed : 3-12m/sec (frequency control)
·Adhesive Belt Size:1390*2100mm Detailed Photos
Packaging & Shipping
You are welcome to contact us for different material sanding technology consulting. Application
1. Lacquer sanding
2. Floating structure, suitable to UV Line
We have done sanding solutions for wooden panels,acoustic panels, metal sheet, veneer sheet, PCB boards sanding, funiture,door,flooring,plywood,MDF/HDF, particle boards, etc. manufacturers.

---
