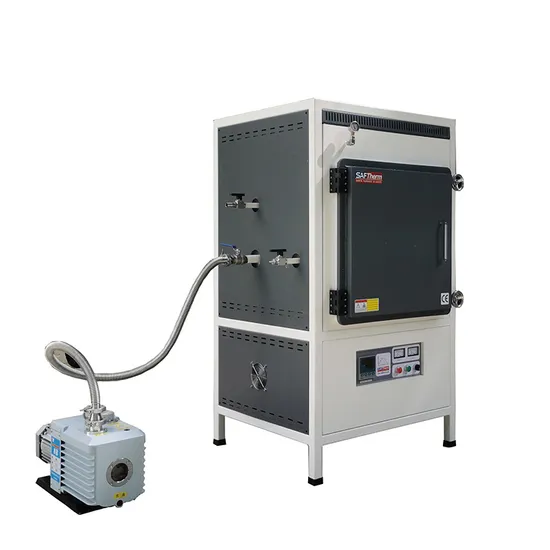

1600c Industrial Electric Heat Treatment Furnace Ceramic Sintering Atmosphere Box Furnace

Product Description

Product Description An atmosphere furnace provides the ideal environment for various procedures in many laboratories, providing the controlled temperature and atmosphere specific projects require. The controlled atmosphere is desired to complete tasks that require exact temperatures pricisely. This is the best way to ensure the successful test result of your project because it is sealed tightly to ensure the right environment.

STQ 1700 series controlled atmosphere furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and the top quality heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface, also keep the surface safe to touch. Furnace operation is controlled by digital 30-segment controller with temperature accuracy of +/- 1 C degree. Proper temperature control is vital to the success of your project as well. Temperatures that are too high or too low will cause problems with the process and could cost your company a significant amount of money.

Mean Features
1. Multiple gas inlets and outlets with stainless steel ball valves. Flow meter to control inbound and outbound gas flows.
2. Furnace chamber is welded and oil leak tested to ensure air tightness. Furnace door is sealed with high temperature silicon gasket.
3. Dual wall housing makesure the body cool during heavy use.
4. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
5. Built-in ammeter and voltmeter for easy monitoring and troubleshooting.
6. Built-in computer interface.
7. Long life type B thermocouple.
8. CE certified
Main Specifications

Model	STQ-3-17	STQ-8-17	STQ-18-17	STQ-64-17
Chamber Size mm(W*D*H)	150x150x150	200x300x120	250x300x250	400x400x400
Power supply	220V/3KW	220V/5KW	380V/7KW	380V/20KW
Type	Benchtop Front-loading
Usage	Atmosphere furnace is designed for material synthesis under controlled inert gas atmosphere or mixture gases with better temperature uniformity. It is an ideal heating equipment for preparing new material which requires inert gas or oxidizing gas including hydrogen gas.
Furnace structure	1. The furnace is consist of heating system, gas system, vacuum system 2. chamber is consist of insulation material and heating elements and atmosphere boxes 3. Temperature controller is consist of PID temp. controller, control elements and thermocouple 4. Integrated the furnace body and the temperature controller in one, the furnace is fixed on the temperature controller
Max. Working temperature	Air, Nitrogen Dioxide (NO2), Carbon Dioxide (CO2): 1700C degree Helium (He), Neon (Ne), Argon (Ar): 1650C degree Nitrogen (N2), Carbon Monoxide (CO), Hydrogen (H2) up to 5%:1600C degree Rough vacuum 1500°C
Heating Rate	≤10ºC/min (suggest 8ºC/min for longer life using of furnace)
Heating Element	1.High quality Molybdenum silicide rods (MoSi2, diameter 6X12mm) 2.High quality vacuum formed insulation ensure fast heat up, excellent temperature control and short cool down times 3.Vertical layout, distribute in two sides evenly, give an improved temperature gradient (each side 4 pcs, total 8 sets) 4.U shape non-metal high temperature heating element with high purity Mo and SI as main material. Fast rising speed and long service life. Easy for installing and replacement, max temperature can reach 1700°C
Chamber material	1. Adopt high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties 2. High quality 1800 degree fiber alumina as refractory lining, pure white color 3. Ceramic fiber insulation for fast heat-up and reduced energy consumption 4. Vertical layout of heating elements on the round chamber which give an ideal temperature uniformity
Temp. Uniformity	±5°C
Thermocouple	type B
Temperature Controller	1. Control system integrated in the furnace base, Defined application within the constraints of the operating instructions 2. Furnace temperature controller utilizes Intelligent PID 30 segments program 3. Feature single setpoint digital control, LED display of actual temperature VS set point 4. A high-precision digital microprocessor controller fitted with self-tuning and manual PID settings makes temperature and other parameters easy to control 5. Temperature controller Precision ±1ºC
Atmosphere perfermance	high temperature PTFE gasket is installed on the furnace door to ensure the reliable sealing of the furnace; Ultimate vacuum level for STQ furnaces is around 20000Pa with hose barb connections. Please keep in mind that our STQ series of atmosphere furnaces are NOT designed to be vacuum furnaces, the vacuuming part is mainly for users to pre-vacuum the chamber, before putting in inert or other protective gases.
inlet port and outlet	1.The inlet and outlet ports are designed on the side and back wall of the furnace body and can be supplied with inert protective gas. The gas flow rate is controlled by a float flowmeter with a range of 1-10L/min. 2.Two ports on the back of the wall will make it accessible to water cooling.
Electronic component	air switch, buttons, solid-state relay, A.C contactor etc.
Furnace Shell	1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes 3. Energy efficient insulation keeps exterior safe to touch
Safety Precautions	1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
Optional Accessories	1. Vacuum Gauge 2. Vacuum pump 3. Industrial chiller (to cool the furnace body during heat processing for safe and prolonged lifetime) 4. Mass flowmeter 5. Corumdum crucibles 6. Exhaust chimney
Certification	ISO9001 CE
Warranty	One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively

Standard package list

Item Description	Quantity	Reference Image
Atmosphere furnace	1 set
Thermocouple	1 pc
Three-meter power line	1 set
Crucible tongs	1 pair
Thermal Resistance gloves	1 pair
An English instruction book	1 pc

Detail Pictures

Packaging & Shipping Standard Export Safe Packing:
1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
Delivery Time: 30 working days against receiving advanced payment
Port: Shanghai/Qingdao

Company Information Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan, China Free Trade Zone. SANTE products cover 1000ºC~1800ºC Muffle furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000ºC Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on
Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment lab furnaces and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!
FAQ
1: Are you a factory?
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
Firstly, we are ISO9001:2008 and CE certified factory, all the processes are strictly following the standard of the metallurgy process; secondly. We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year(expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.
