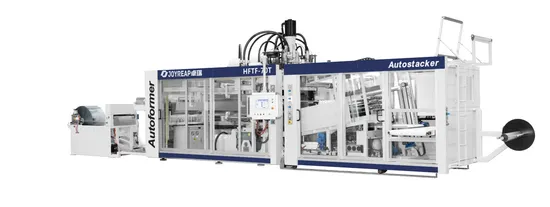

Cup Thermoforming Machine /Cup Making Machine for PP/Pet/PS Materials

Product Description

Cup Thermoforming Machine /Cup Making Machine for PP/Pet/PS Materials
Applicantion:
Water Cup Making Machine can mainly produce upscale plastic containers like cups, bowls, square boxes etc. which is suitable for PP. PS. PLC. PVC and PET material.
Design Features:
In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Rapid mould changing device
Mould automatic memory system
Moulds:

Main Technical Parameter:
Model	HFTF-70T
Max. Molding Area	680*320 mm
Max. Forming depth	130 mm
Max. Sheet width	730 mm
Sheet Thickness range	0.3-2.0 mm
Max. Clamping force	250 KN
Upper/Lower heating power	70/60 KW
Air pressure	7-8.5bar
Max. Speed	42 Cycles/min
Total installed power	150 KW
Machine Weight	12000 kg
Dimension	12*4*3.5m

Sample:
Packaging shipping:
Company History:
Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d
Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic
Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries
And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,
Chile, Bolivia, Saudi Arabia, Peru, etc.
Operation:
CONTACT PERSON:
WATCH OUR VIDEO IN YOUTUBE:
Factory address:
NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
https://youtu.be/s6DWJtKHGCc
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.

---
