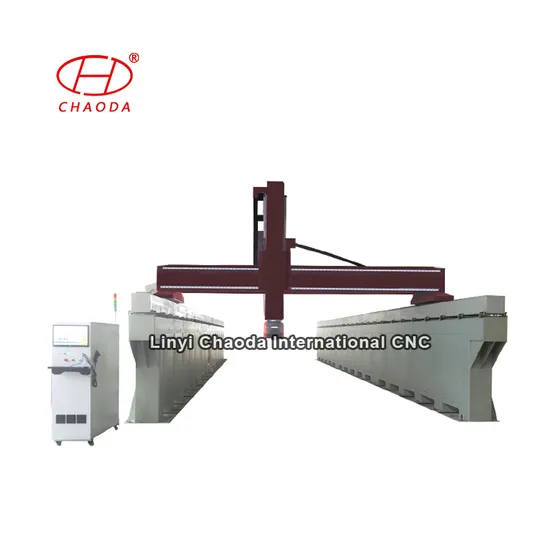

China Large 4015 CNC Router 5 Axis Machine for Big Mould Making

Product Description

china large 4015 cnc router 5 axis machine for big mould making
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining.

Model No.	JC4015-5AXIS
X,Y,Z,A,C working size	4000*15000*1500mm* ±120°* ±245°
Whole structure	heavy duty steel wall structure
Table surface	no
Spindle	10KW/15KW ATC spindle, cooled by liquid
Tool magazine	Disk type automatic tool changer, with 8pcs tool magazine
Driving system	Japan YASKAWA servo motor and driver
Inverter	Delta
Operating system	5 axis Syntec (option:OSAI)
Operation language	G code
Working voltage	AC380V, 3-phase, 50Hz
Running environment	Temperature: 0ºC-45ºC; Relative humidity:30%-75%

It can process many materials,like eps foam,woods, MDF, Composite boards, ,PVC, Rigid plastics,polyester,
fiberglass, Acrylic,Organic glass, Aluminum,etc.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas

---
