Durable Eco-Friendly Alumina Ceramic Filter Plate for Vacuum Ceramic Filter

Product Description

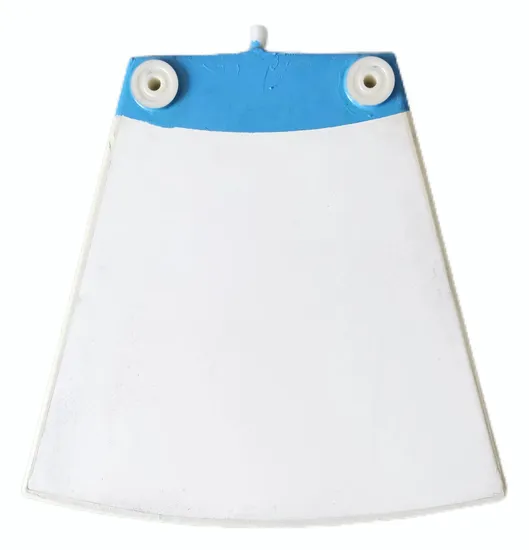

Durable Eco-Friendly Alumina Ceramic Filter Plate for Vacuum Ceramic Filter
Product Description
1.Basic Info.

Model No.	1#/2#/3#/4#/5#/6#	Material	Brown Corundum
Customization	Available	Trademark	Tongdu
Package	Foam Board	Efficiency	High

2.overview
Ceramic filter plates are the core components of ceramic vacuum filters. As the filtering medium for ceramic filters, they have been a revolutionary breakthrough since the 20th century and have a strong substitutability for traditional filters.
Ceramic plates are made of Al203 or SiC materials with high mechanical strength, excellent corrosion resistance and good wear resistance. After adding part of inorganic binder and pore-forming agent, using hydraulic gradient dry pressing and precision machining, using a good process to spray the alumina film surface with micron aperture, and secondary sintering at 1500 ~ 1800ºC to form a porous ceramic plate with double-sided filter layer with pressure resistance of up to 8bard.
They are divided into two categories:white corundum and brown corundum. Detailed Photos
Our Advantages
3.Features
(1) .the skeleton density is large, the film layer strength is high, pressure resistance and corrosion resistance, not easy to damage.
(2).high porosity, large production capacity; High filtration accuracy, low vacuum energy consumption; The material is fine and the plasticity is strong. Our company now has the adhesive composite board process and the whole sintering one board process.
(3).regeneration methods, can use high temperature and high pressure, organic solvents and other cleaning, regeneration effect is good, the service life is greatly extended.
4.Working Principle
Because this porous material contains numerous tiny capillaries, capillary action is possible. Due to its capillary force in the filtration process, only water can pass through the filter plate in the whole process, and the air can not pass through, so as to complete the filtration task, and the vacuum degree can reach more than -0.097Mpa. Low requirements on vacuum pump pumping capacity.

Product Parameters
5.Technical Parameter Table
