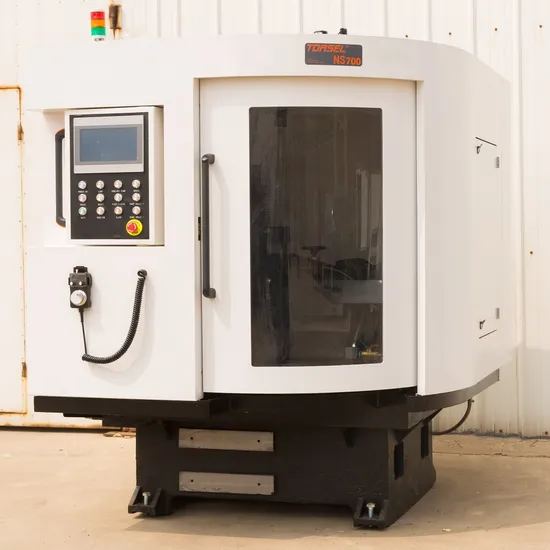

Stable Circular Saw Blade Grinding Machine Sharpening Side Angle

Product Description

1. Features and advantages
1) Used for grinding side of tct circular saw blade two sides. Radial clearance angle and tangential clearance angle can be ground.
2) Good stability: Use special treated cast iron base and imported precision components to guarantee the accuracy and stablility of the machine. Long-term use without deformation
3) Easy operation: CNC with friendly interface panel, various tooth shapes available, all parameters can be set directly and stored automatically
4) High accuracy: Precision<0.02mm or even better. satisfactory grinding performance
2. Machine parameters

Saw blade diameter	110~710mm
Saw blade thickness	0.5~8mm
Radial clearance angle	5°~ -5°
tangential clearance angle	0°~ 5°
Hook angle	-5°~28°
Bore diameter	12~120mm
Pitch	2~65mm
Tip length	1~15mm
Wheel diameter	80~125mm*32mm
Wheel speed	5000r/min
Grinding speed	4~20mm/s
Power	4.5KW
Dimensions	1900 X1590 X1920mm
Weight	1900kg

3. Machine details

Exhibition Show
FAQ
1. What products do we have?
Four categories saw blades sharpening machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. sharpener with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade sharpener: highest accuracy, suitabe for cermet tipped saw blade.
Except saw blade sharpening machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our saw blades sharpening machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficieny: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.

---
