Forklift Solid Tire/Hydraulic Solid Tyre Curing Press/Rubber Solid Tire Making Machine/Rubber Wheel Barrow Solid Tyre Vulcanizing Press

Product Description

Specification

item	value
Place of Origin	China
	Shandong
Brand Name	wanflon
Type	Vulcanizer
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Hot Product 2024
Warranty of core components	2 Years
Core Components	PLC, Motor, Gear
Tire Machine Type	Other Tire Machine
Voltage	Required
Dimension(L*W*H)	1730*930*2460mm
Certification	ISO9001:2008/CE/SGS
Year	Customization
Warranty	2 Years
	Video technical support
Key Selling Points	Competitive Price
Power (kW)	3kW
Weight (KG)	2600KG
After Warranty Service	Video technical support, Spare parts
Applicable Industries	Rubber
Local Service Location	None
Showroom Location	None
Total Pressure(MN)	1.60
Dayloigh(mm)	125
Working Layer	2
Piston Stroke(mm)	500
Main Motor Power(KW)	3
Control Type	PLC
Warranty	2 years
After-sales Service Provided	Video Technical Support
Heating Mode	Electric Heating
Mode Of Production	Support Customization

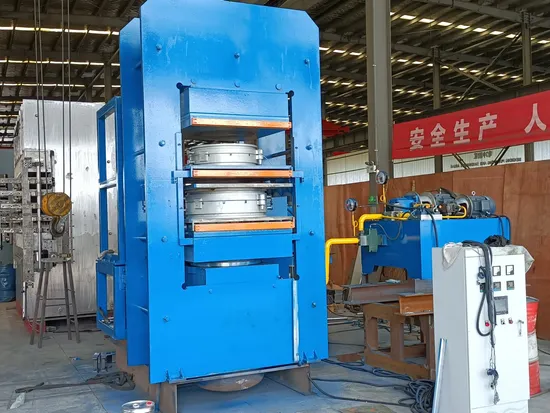

Details Of Vulcanizing Press
1. Simple and convenient structure, flexible operation, commodious space. The cylinder and plunger are made up of high quality materials. 2. Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure. 3. Electrical control system:Complete the perfect control system (including wire and cable and safety protection devices, etc.),Use automatic time relay,can achieve Automatic close mold,exhaust,stuffy,Vulcanization time, supplement pressure,open mold etc working process, also the automatic control and hand control can be switched easily. 4. Up and down platforms:Adopts Q235 steel plates. In order to guarantee the make precision, it is applied with automatic cutting baiting, mechanical slicer producing welded groove, carbon dioxide gas shielded welding. 5. Hydro-cylinder:Adopts ZG270-500 and piston stroke adpots hard cold chilled alloy cast iron, And sealing structure applies the combined structure with double sealing ring and one dustproof ring to guarantee longer service. 6. Customers can choose according to their needs. 7. New design concept, strong technical force and advanced manufacturing processes of the press ensures that each vulcanizing press can be manufactured to meet customer's individual requests.

---
