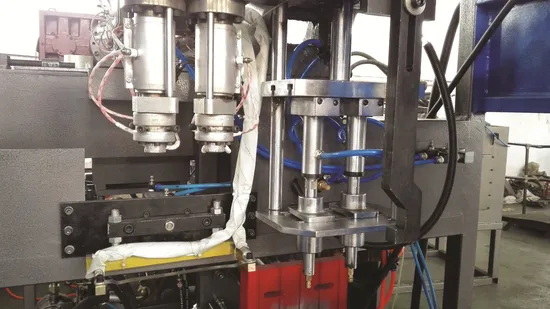

HDPE LDPE PP Small Bottle Blow Molding Machine

Product Description

PXB40
5ML - 1L Blow Molding Machine
Special Feature:
- High Speed Single Station For HDPE, PE, PP, PS, etc. Raw Material
- The whole hydraulic system equip Japanese YUKEN components
- Perfect Usage for high quality 0.05L - 1L bottle, ocean ball, small toys etc.
- Imported hydraulic valve, seal and Pressure Proportional Control.
- Optional Multi-color
- Quick Action Speed, Stable Running 24/7
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China

Basic Equipment

Clamping system	Single Station+High-precision guide+large arm cylinder axle
Extrusion System	Hard gear surface decelerator+Japan inverter
Die system	Center -incoming extrusion die with special steel
Hydraulic system	Japan hydraulic valve seal and proportional control
Control system	Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts

Parameters

Specifications
Material		PE,PP, PVC, PA
Max container capacity	L	1
Number of die	SET	1,2,3,4
Output(dry cycle)	Pc/hr	1200
Machine Dimension(LxWxH)	M	2.5x1.5x2.3
Total weight	T	3.2
Clamping Unit
Clamping force	KN	33
Platen opening stroke	mm	100-300
Platen size	mm	260x300
Max mould size(WxH)	mm	330x300
Mould thickness	mm	110-150
Power
Max drive	KW	11.5
Oil pump motor power	KW	4
Cooling water pressure	KW	0.2-0.3
Air pressure	MPA	0.6
Air consumption	M3/min	0.4
Average energy consumption	KW	7
Extruder unit
Screw diameter	mm	40
Screw L/D ratio	L/D	24
Melting capacity	Kg/hr	20
Number of heating zone	zone	2
Extruder heating power	KW	6.8
Extruder driving power	KW	7.5
Die
Number of heating zone	zone	3
Power of die heating	KW	3
Max die-pin diameter	mm	40
Center distance of double die	mm	100

Delivery Time:
- No later than 30 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
