Product Description
Product Description

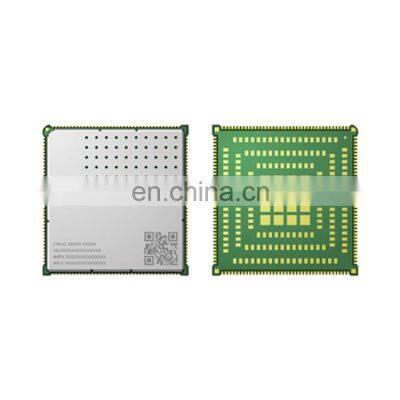

DescriptionSIM8970-Series● The SIM8970 series is the LTE Cat 6 smart module with Android system, it adopts Qualcomm 8-core 64-bit ARM V-8 processor, with frequency up to 2.0GHz and AdrenoTM 610 GPU. It supports multiple high resolution camera and high definition touch display, and has powerful high data transfer and multimedia processing capability. With smart module operation system and high performance advantage, the module is ideal for rapid development of multimedia wireless communication products and applications.● The SIM8970 series highly integrates wireless communication, short distance communication and multiple satellite positioning receiver function. MIMO technology is used to support LTE Cat 6 and 2 × 20MHz carrier aggregation.It supports multiple communication modes such as GSM/GPRS/EDGE, WCDMA/HSPA+, LTE-FDD and LTE-TDD. It supports GNSS multi-mode satellite positioning and short distance communication including Wi-Fi 802.11 a/b/g/n/ac and BT5.x BLE● The SIM8970 series has abundant interfaces, it can be connected with camera, display screen, audio, sensors and other equipments. It supports multi-dimensional data collection and man-machine interaction. The interfaces including MIPI_DSI/CSI/UART/SPI/I2C/GPIO/USB greatly expand smart module applications, and make the module suitable for smart POS, advertising media, automotive electronics, smart diagnostics, smart security devices and industry.Product Advantages● Cat 6 / Wi-Fi / BT● Support 4K@30fps video recording and playing● Built in charging management function, supporting QC3.0● Integrate GNSS function, supports rapid accurate positioning under different environment● 4-lane MIPI_ DSI(up to 2520*1080 @60fps) and DP over USB Type-C for Dual Independent Display● Can carry 4 cameras. The main camera can support up to 25MP pixels, and the secondary camera can support up to 16MP pixelsProduct DetailsFrequency BandsSIM8970EU:LTE-FDD B1/B3/B5/B7/B8/B20/B28LTE-TDD B38/B40/B41WCDMA B1/B5/B8GSM 900/18002CA B1-B1,B3-B3,B1-B3,B38-B38,B40-B40,B41-B41SIM8970NA:LTE-FDD B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71LTE-TDD B41WCDMA B2/B4/B52CA 2C,5B,7C,12B,66B,66C,41C2A-2A,4A-4A,5A-5A,7A-7A,12A-12A,25A-25A,66A-66A,41A-41A,2A-4A,2A-66ASIM8070(No 4G) 2.4G /5G 802.11 a/b/g/n/ac BT 5.x BLEData TransferLTE:50Mbps(UL)300Mbps(DL)HSPA+:5.76Mbps(UL)42 Mbps (DL)UMTS 384Kbps(UL/DL)EDGE 236.8Kbps(UL/DL)GPRS 85.6Kbps (UL/DL)InterfaceLCM:4-lane MIPI_DSIFHD 2520 * 1080 @ 60fpsDP1.4 over USB Type-C for Dual Independent DisplayCapacitive Touch PanelCamera3 groups of Mipi_ CSICombined dphy 1.2 / cphy 1.0Configurable to 3 or 4 cameras up to 25MP pixelsAudio2 channel digital mic interface3 channel analog audio input & output4 digital microphonesUSB Compliant with USB 3.1/2.0UART *6I2C *9SPI *4ADC *2UIM Card *2, dual cards dual standbyGPIO ≥*40Charging QC3.0Antenna Main & Diversity & GNSS & Wi-Fi/BTGeneral FeatureWLAN 2.4G /5G 802.11 a/b/g/n/acBT BT 5.x BLEGNSS BeiDou/GPS/GLONASSSupply Voltage 3.4V ~ 4.4VMemory 64GB eMMC + 4GB LPDDR4x128GB UFS + 64GB LPDDR4xTemperature Range -30℃ ~ +75℃Dimensions 44.1*45.6*2.9mmForm Factor LCC+LGAWeight Approx. 13.5gCertificationsRoHS/REACH/CEMedia & Software FeatureUSB Drive Win7/Win8/Win10Operating System Android 10/11Video encoding and decodingEncode: 4K30 HEVC/H264/VP8/MPEG4 Decode: 4K30 8-bit: H.264/VP8/VP9 4K30 10-bit: HEVC Wireless display(decode + encode): 4Kp30 Dec+ 1080p30 EncAudio encoding and decodingG.711, G.729A/AB; EVRC, EVRC-B, EVRC-WB; AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR; GSM-EFR/-FR/-HR; MP3; AAC; He-AAC v1, v2; WMA 9/Pro; Dolby AC-3, eAC-3, DTS-HD, FLAC, APE, ALAC, AIFFFirmware Upgrade USB/OTA/TF cardWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
