China Centrifugal Oil Water Separator Disc Centrifuge Latex Separator

Product Description

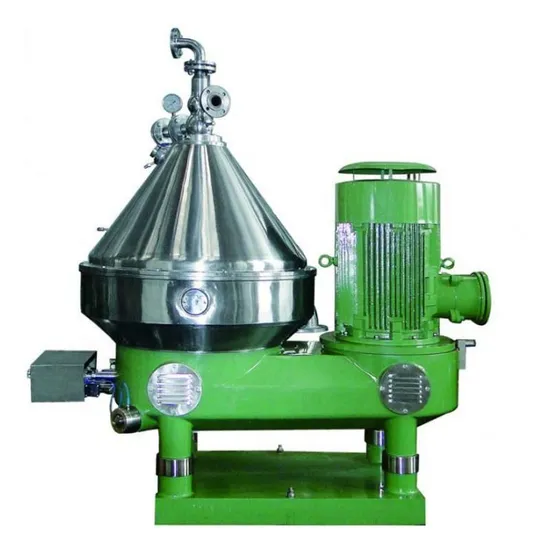

Product Description OEM Centrifugal Oil Water Separator disc centrifuge 3phase smt Disk Type Vegetable Oil Separator Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying operation;Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation. How it works The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the
feed passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface,
the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the residue will flow toward the big centripetal pump.
The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small
centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump. Product Paramenters

Model	DHYY00	DHYY400	DHYY500	DHYY550	DHYY730
Bowl Speed r/min	7300	7056	6600	6200	4500
Sedimentation Area cm^2	17.2*10^7	28.5*10^7	35*10^7	67*10^7	90*10^7
Through-output T/H	2	5	10	15	35
Motor Voltage Kw	4	7.5	15	18.5	55

Application
1. Purifiation of animal fat
2. Purification of fish oil
3. Kitchen waste oil
4. Separation of fish pressed liquid
5. Waste oil
6. Hogwash oil Product Advantage: We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. Concise bowl design without frequent washing
5. Hydraulic coupling driving with longer service 3 Kinds of Discharge types:
1. Solid retaining
2. Continuous discharge
3. Intermittent discharge Details Images Drum body The drum is a component to separate material and rotates at high speed, is the heart of the separator. Disc of drum All those parts are use stainless steel.Such as 304/316L or 2205 Duplex stainless steel. Shaft The vertical shaft is to transmit power, is equipped with speed step-up gear (small spiral gear) and hi-speed rotating part. The cross shaft is to transmit motor power to the vertical shaft and main parts of the drum Recommend Products PRODUCT PACKAGING PACKAGING SHIPPING Company Profile Shenzhou Machinery Co.,Ltd, We are the professional manufacturer of pharmaceutical machinery, separation equipment,
food machinery, Liquid Filling Machine and packing machine. specializing in provide with the whole set of technology and
equipment. we have professional technology team to design, research and development for customer according to customer's requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and pharmacy project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 50 countries. FAQ 1. What certificates do you have?
We can provide CE, ISO 9001, etc
2. What is the warranty period of the equipment?
Normally 1 year warranty.
3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.
4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.

---
