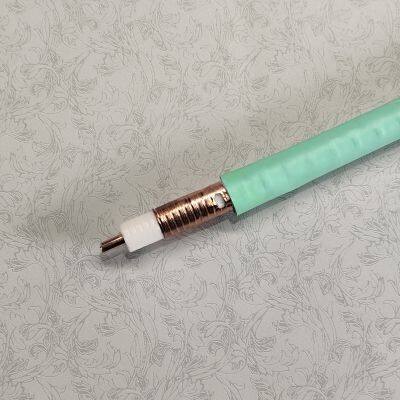

| 2.4GHz WLAN Radiating cable HLRCAYZ-50-12(1/2") Leaky cable | ||||
| 1、Leaky cable functions as a distributed antenna to provide communications in tunnels, mines and large building complexes and is the solution for any application in confined areas. 2、Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be radiated into the surrounding environment. Conversely, a signal transmitted near the cable will couple into the slots and be carried along the cable length. 3、This leaky cable utilize a low-loss cellular polyethylene foam dielectric and a Corrugated copper foil outer conductor which offers a superior electrical performance together with good bending properties. 4、This product is suitable for WLAN communication systems, with low loss characteristics. | ||||
| Technical features | ||||
| Structural dimensions and materials | ||||
| Inner Conductor | Copper Clad Aluminum Wire | 4.8 mm | ||
| Insulation | Physical Foam Polyethylene | 12.3 mm | ||
| Outer Conductor | Overlapping Copper Foil- | 12.6 mm | ||
| Jacket | Low Smoke Halogen-free Fire-retardant | 15.5 mm | ||
| Mechanical and environmental specifications | ||||
| Minimum Bending Radius | 75mm | |||
| Repeated Bending Radius（15 times） | 150mm | |||
| Bending Torque | 13.5N·m | |||
| Weight | 210 g/m | |||
| Recommended Clamp Distance | 0.5mm | |||
| Minimum Distance to Wall | 80mm | |||
| Tensile Force | 1000N | |||
| Storage Temperature | -30 ℃ ~ ﹢80 ℃（LSZH) | |||
| Installation Temperature | -20 ℃ ~ ﹢60 ℃（LSZH) | |||
| Operation Temperature | -30 ℃ ~ ﹢80 ℃（LSZH) | |||
| Electrical specifications | ||||
| Capacitance | 75pF/m | |||
| Impedance | 50±2Ω | |||
| Velocity | 89% | |||
| Insulation Resistance- | ＞10000MΩ•km | |||
| Jacket Spark | 8KV | |||
| Insulation Voltage | 6KV | |||
| Inner Conductor DC Resistance | 1.65 Ω/km | |||
| Outer Conductor DC Resistance | 6.5 Ω/km | |||
| Operating Frequency | 2400~2500MHz | |||
| VSWR | ≤1.3 | |||
| Resonant Frequencies（MHz） | 156, 469, 781, 1094, 1406, 1718, 2031, 2344 | |||
| Attenuation and Coupling Loss | ||||
| Frequency（MHz） | Attenuation（dB/100m，20℃，±5%） | Coupling Loss（dB,2m,50%/95%，±5dB ） | ||
| 75MHz | 1.85 | 60/68 | ||
| 150MHz | 2.80 | 63/74 | ||
| 450MHz | 4.95 | 64/68 | ||
| 900MHz | 7.45 | 63/75 | ||
| 1800MHz | 11.98 | 58/67 | ||
| 1900MHz | 12.45 | 58/67 | ||
| 2200MHz | 13.90 | 58/67 | ||
| 2400MHz | 14.71 | 54/60 | ||
| 2500MHz | 15.05 | 59/67 | ||
