13kw~300kw 50/60Hz Fawde Series Diesel Power Generator Set

Product Details

Product Description

Product Description

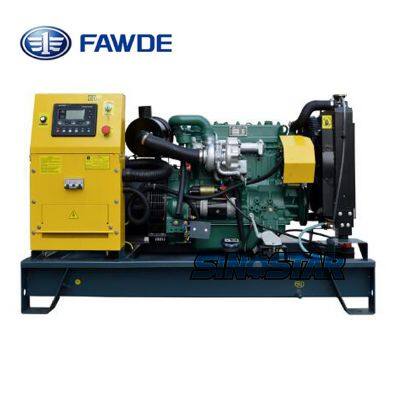

13kw~300kw 50/60Hz Fawde Series Diesel Power Generators set

1.PRODUCT Feature
power range is from 13KW ~300KW OUTPUT
Powered by CHINESE FAWDE water-cooled diesel engine
Alternator: MECC ALTE,Leroy somer,Marathon,
AMF panel with ATS
Soundproof,weather proof,trailer type for optional
Manual of engine,alternator and control system
with two storage battery and silencer
Fuel tank for 8 H running based on frame
1 year or 1000 H guarantee
2.Specifications:

50HZ GENERATOR SETS POWERED BY FAWDE ENGINE
1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8
Generator Set Model		Prime Power		Standby Power		Engine		Maximum current(A)
Prime	Standby	KW	KVA	KW	KVA	Chinese Engine	Power(kw)	Maximum current(A)
SP-F13P-1	SP-F14S-1	13	13	14	14	4DW81-23D(485)	17-19	61
SP-F16P-1	SP-F18S-1	16	16	17.6	17.6	4DW91-29D(490)	21-23	77
SP-F20P-1	SP-F22S-1	20	20	22	22	4DW92-35D(490T)	26-29	96
SP-F25P-1	SP-F28S-1	25	25	27.5	27.5	4DX21-45D(4102)	33-36	120
SP-F16P	SP-F19S	12.8	16	15	18.75	4DW81-23D(485)	17-19	27
SP-F20P	SP-F23S	16	20	18	22.5	4DW91-29D(490)	21-23	32
SP-F25P	SP-F28S	20	25	22	27.5	4DW92-35D(490T)	26-29	40
SP-F30P	SP-F35S	24	30	28	35	4DW92-39D-HMS20W	29-32	51
SP-F30P	SP-F35S	24	30	28	35	4DX21-45D(4102)	33-36	51
SP-F40P	SP-F44S	32	40	35	44	4DX21-53D-HMS20W	39-43	64
SP-F50P	SP-F55S	40	50	44	55	4DX22-65D-HMS20W	48-53	79
SP-F60P	SP-F66S	48	60	52	66	4DX23-78D-HMS20W	57-63	95
SP-F68P	SP-F75S	55	68	60	75	4110/125Z-09D	65-72	108
SP-F85P	SP-F95S	68	85	76	95	CA4DF2-12D	84-92	137
SP-F100P	SP-F110S	80	100	88	110	6CDF2D-14D	96-105	159
SP-F125P	SP-F138S	100	125	110	138	CA6DF2-17D	125-138	199
SP-F150P	SP-F165S	120	150	132	165	CA6DF2-19D	140-154	238
SP-F188P	SP-F200S	150	187.5	160	200	CA6DL1-24D	176-194	289
SP-F225P	SP-F250S	180	225	200	250	CA6DL2-27D	205-226	361
SP-F250P	SP-F275S	200	250	220	275	CA6DL2-30D	227-251	397
SP-F313P	SP-F340S	250	313	272	340	CA6DM2J-39D	287-316	491
SP-F340P	SP-F360S	270	337.5	288	360	CA6DM2J-41D	300-330	520
SP-F375P	SP-F400S	300	375	320	400	CA6DM3J-48D	350	577
SPECIFICATION SHEET FOR 60HZ GENERATOR SETS POWERED BY FAWDE ENGINE
Generator Set Model		Prime Power		Standby Power		Engine		Maximum current(A)
Prime	Standby	KW	KVA	KW	KVA	FAW	Power(kw)	Maximum current(A)
60HZ SINGLE-PHASE220V
SPX-9P-1	SPX-10S-1	9	9	10	10	KM385BD(LAIDONG)	14	45
SPX-12P-1	SPX-13S-1	12	12	13.2	13.2	KM385D(LAIDONG)	17	60
SPX-F15P-1	SPX-F16S-1	15	15	16.5	16.5	4DW81-28D	20-22	75
SPX-F20P-1	SPX-F22S-1	20	20	22	22	4DW91-38D	28-31	100
SPX-F25P-1	SPX-F28S-1	25	25	28	28	4DW92-42D	31-34	127
SPX-F30P-1	SPX-F33S-1	30	30	33	33	4DX21-53D	39-43	150
SPX-F35P-1	SPX-F39S-1	35	35	38.5	38.5	4DX21-61D-HMS20W	44-49	175
SPX-F40P-1	SPX-F44S-1	40	40	44	44	4DX22-75D-HMS20W	55-60	200
SPX-F44P-1	SPX-F48S-1	44	44	48	48	4DX22-75D-HMS20W	55-61	218
SPX-F50P-1	SPX-F55S-1	50	50	55	55	4DX23-82D	60-66	250
SPX-F60P-1	SPX-F66S-1	60	60	66	66	4DX23-90D-HMS20W	66-72	300
SPX-F70P-1	SPX-F77S-1	70	70	77	77	CA4110/125Z-11D	80-88	350
60HZ 277/480V
SPX-F20P	SPX-F22S	16	20	17.6	22	4DW81-28D	20-22	26
SPX-F28P	SPX-F30S	22	27.5	24	30	4DW91-38D	28-31	36
SPX-F30P	SPX-F34S	25	31	27.5	34	4DW92-42D	31-34	41
SPX-F35P	SPX-F39S	28	35	31	39	4DX21-53D	39-43	47
SPX-F38P	SPX-F40S	30	37.5	32	40	4DX21-53D	39-43	48
SPX-F45P	SPX-F50S	36	45	40	50	4DX21-61D-HMS20W	44-49	60
SPX-F53P	SPX-F58S	42	53	46	58	4DX22-75D-HMS20W	55-60	70
SPX-F63P	SPX-F68S	50	63	55	68	4DX23-82D	60-66	82
SPX-F70P	SPX-F75S	56	70	60	75	4DX23-90D-HMS20W	66-72	90
SPX-F80P	SPX-F88S	64	80	70	88	CA4110/125Z-11D	80-88	106
SPX-F100P	SPX-F110S	80	100	88	110	CA4DF2-14D	101-110	132
SPX-F118P	SPX-F130S	94	118	103	130	CA6DF2D-16D	116-128	156
SPX-F130P	SPX-F145S	105	131	116	145	CA6DF2-18D	132-145	174
SPX-F160P	SPX-F175S	130	160	140	175	CA6DF2-21D	154-140	210
SPX-F206P	SPX-F220S	165	206	176	220	CA6DL1-27D	195-215	265
SPX-F245P	SPX-F270S	196	245	216	270	CA6DL2-32D	235-259	325
SPX-P313P	SPX-P343S	250	313	275	343	CA6DM2J-42D	305-336	413
SPX-F338P	SPX-F360S	270	337.5	288	360	CA6DM2J-42D	305-336	433
SPX-F400P	SPX-F440S	320	400	350	437.5	CA6DM3J-49D	360	526

Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.
