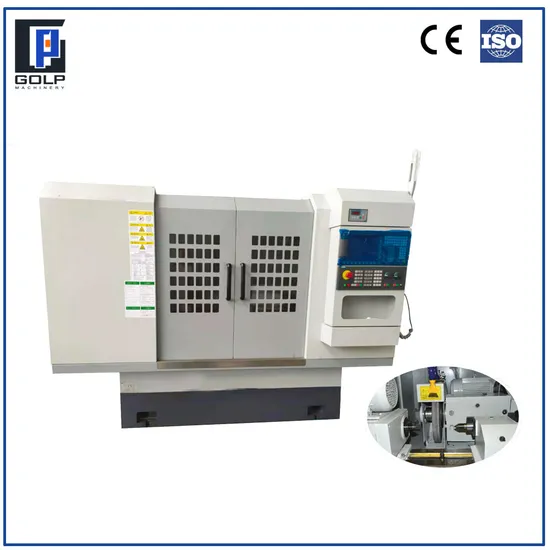

Mk1320 CNC Grinder Cylindrical Grinding Machine for Mod. 200mm

Product Description

Δ. CNC cylindrical grinding machines are pre-programmed according to the processing requirements and are processed by numerical information commands from the control system, and are mainly used for grinding cylindrical and conical external surfaces. CNC cylindrical grinding machines are generally characterized by a high degree of versatility and modularity, high precision, high rigidity, high efficiency and high adaptability. Δ. Depending on the type of CNC cylindrical grinding machines, they are suitable for batch processing of parts related to the automotive, motorcycle, air compressor, bearing, aviation, aerospace and other industries.

1. The machine tool is a two axis (x-axis is transverse feeding of grinding wheel frame and z-axis is longitudinal movement of worktable two linkage CNC cylindrical grinding machine. The CNC system adopts international or domestic well-known brands. it has the functions of automatic feed, withdrawal, rough grinding, fine grinding, dressing of grinding wheel, automatic compensation and so on. With optional automatic measuring instrument, it can realize the full closed-loop function of grinding cycle.
2. The grinding wheel spindle adopts sleeve type or dynamic and static pressure spindle, the grinding wheel frame quide rail adopts steequide rail, the worktable quide rail adopts Flat-V plastic lubrication guide rail, and the servo motor ball screw is used to drive the feed mechanism and the worktable to move.
3. The main body of the machine tool is cast by cast iron, with a fully enclosed protective cover, a backpack type electrical cabinet in the rear and a rotary operation screen in the front.

Name		Length
		300mm	500mm	750mm
Grinding OD scope		6-200mm
Top center height		125mm
Longitudinal movement distance of worktable		350mm	550mm	800mm
Rotating angle of worktable		+4,-3°
Moving distance of grinding wheel frame		150mm
Taper of head and tail frame tops		Morse No.4
Chuck diameter of head frame		125mm
Move amount of tail frame sleeve		25mm
Max.Size of grinding wheel		400*20- 50*203mm
Servo motor power of X axis		11nm
Servo motor power of Z axis		11nm
Positioning accuracy of X/Z axis		5um
Repeat positioning accuracy of X/Z axis		2um
Motor power of grinding wheel		4kw
Totalpower of machine tool		11.5kw
Weight of machine tool		2300kg	2800kg	3300kg
Size of machine tool(mm)		2300*2200*2500	2800*2300*2500	3300*2300*2500
Processing accuracy(standard specimen)	Roundness	0.0015mm
	Cylindricity	0.003mm
	Surface roughness	Ra0.32um

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
