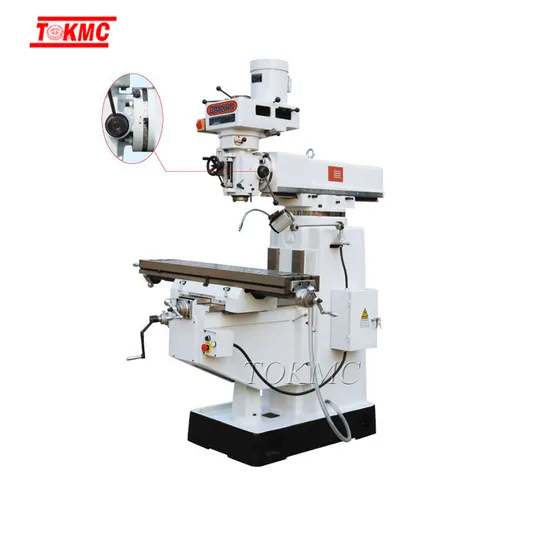

X6325c NSK Spindle Vertical Turret Type Milling Machine

US$2,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6325C
Structure
Ram
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Machine Table Size
254X1370 mm 10X54"
Table Travel
820X420X400mm
RAM Travel
470mm
T-Slot
3-16
Spindle Taper
ISO40
Spindle Quill Feed
0.0015" 0.003" 0.006" mm/Rev
Spindle Motor
3HP 5HP
Transport Package
1516X1550X2080mm
Specification
1490kgs
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Sets/Month

Product Description

knee type turret milling machine
X6325C
•Rectangular guide way adopted on Y-axis and Z-axis make good rigidity.
•The guide way on saddle is lined with TF wearable material which make machine accuracy stability
•The surface of worktable and 3 axes guide way are hardened and precision ground.
•Milling head adopts 5HP motor, standard spindle 16 speed step pulley head, spindle diameter is 100MM, optional is variable speed
•Fixed structure is used to connect the mill head without adapter,which makes good cut intensity.
Model unit X6325C X6325D
Table size mm 254x1270(10"x50")
254x1370(10"x54")
Longitudinal travel mm 820 820
920 920
Cross travel mm 420 420
Vertical travel mm 400 400
Ram travel mm 600 500
T-slot 3x16 3x16
Spindle travel mm 127 127
spindle speed rpm 16 steps
50HZ:65-4500 60HZ:80-5440
Optional:variable 60-3750
Spindle motor hp 5 5
Spindle taper ISO40 ISO40
Auto quill feed mm 0.04,0.08,0.15 /0.0015",0.003",0.006" revolution
Head swivel L/R 90° 90°
Head tilting F/B Fix 45°
Weight kg 1490 1490
