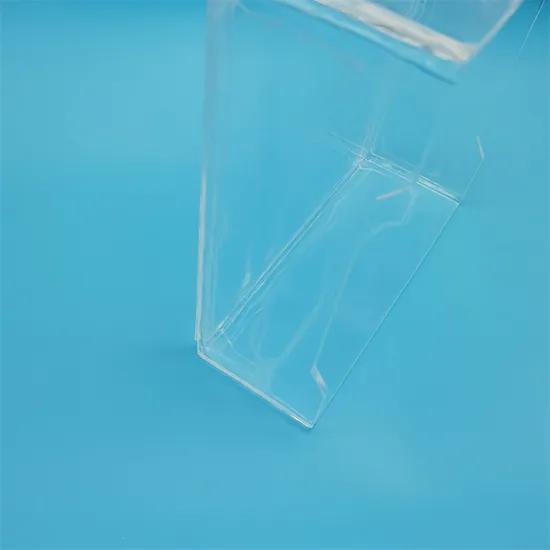

Transparent Fused Silica Container Quartz Sagger for Sintering of Lithium Battery Materials

Product Description

Product Description
Quartz glass Container features:High purity,Mohs hardness 5.3-6.5,continuous work below 1100ºC,Acid and alkali resistance,High transmittance: 85-95%, depending on the spectrum.Crucible is an important part of chemical instruments.
It is a container for melting and refining metal liquids as well as solid-liquid heating and reaction. It is the basis for ensuring the smooth progress of chemical reactions.Chemical composition (unit:ppm)

Al	Fe	K	L	C	N	B	C	M	OH
20	0.4	1	1.4	0.01	1.5	0.2	0.5	0.05	120--260

Physical Properties:

Material	Quartz
Color	Transparent or clear
Surface	No Air Bubble ,no process
Density	2.1g/cm 3
Degree of Hardness	6.5Moh's Scale
Softening Point	1750 C
Strain	1270 C Fused The Quartz Glass Brick
PPM grade	Controlled 10/20/100 PPM
Shape	Circle/Square /Rectangle
Thickness	0.5 MM-100 MM

Productive-processing
Ends closing,
Sand blasting,
Polishing,
Bending,
Cutting,
Pinching,
Burning mouth and so on.
If you need quartz tank, pls kindly send us the drawing.
1. Quartz crucible can be used below 1650 degrees, both transparent and opaque. The translucent quartz crucible made by the arc method is a large-diameter single crystal silicon, which is an indispensable basic material for the development of large-scale integrated circuits. Today, the world's semiconductor industry developed countries have used this to replace small transparent quartz crucibles. It has the advantages of high purity, high temperature resistance, large size, high precision, good heat preservation, energy saving and stable quality.
2, can not be in contact with HF, high temperature, it is easy to react with caustic and alkali metal carbonate.
3. The quartz crucible is suitable for melting the sample with K2S2O7, KHSO4 as a flux and treating the sample with Na2S207 (first dried at 212 degrees) as a flux.
4. Quartz is brittle and easy to break. Pay attention when using it.
5. In addition to HF, a common dilute mineral acid can be used as a cleaning liquid.
We supply all kind quartz product, containing: quartz glass tube, quartz glass plate, quartz glass crucible, quartz glass cuvette and all kinds quartz labware(such as beakers, flasks, measuring barrels, test tubes, , bell jar, volumetric flask, petri dish, quartz boat, weighing flask, dividing funnel, condensing tube and so on). If you need sample, please contact us.
We can customize products according to your requirements!Company Profile
