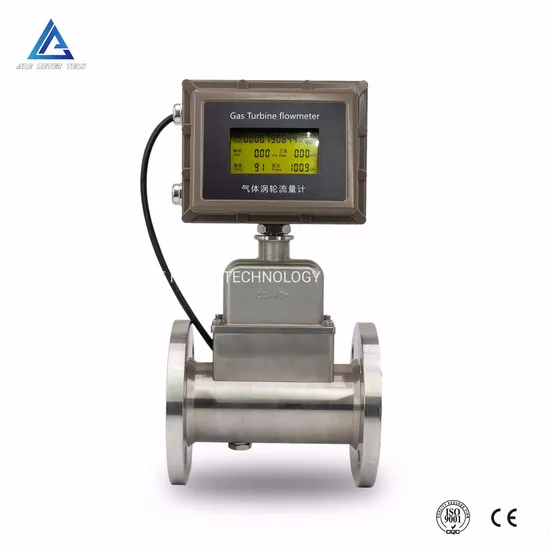

High Accuracy Gas Turbine Flow Meter Flowmeter for Natural Gas,Fuel Gas,LPG
| Item | Description |
| Type | Integrated Type |
| Available Medium | Non-Corrosive,Non Impurities Gas |
| Range of Diameter | DN25-DN300 1"-12" |
| Accuracy | 1.5% (1.0% Optional) |
| Measure Range Ratio | 1:20 |
| Medium Temperature | -20-80ºC |
| Rated Pressure Range | PN16(High Pressure Customize Available) |
| Shaft Material | Aluminum Alloy |
| Double Phase Stainless Steel 2202 |
| Body Material | Stainless Steel 304 |
| Aluminum Alloy |
| Connection | Flange(GB,DIN,ANSI,JIS,HG or Customize) |
| Thread(NPT,BSP,GB or Customize) |
| Straight Pipe Section | 5*DN Upstream .3*DN Downstream |
| Display | LCD Display with Adjusting Button |
| Volume Correction | Temperature and Pressure Compensation(@20ºC,1 ATM) |
| Power Supply | 24VDC(8-36VDC) |
| 3.6V Lithium Battery(Life Time 2-3 Years) |
| Signal Output | 4-20mA |
| Frequency/Pulse |
| Communication Protocol | RS485 MODBUS |
| HART |
| Electricity Entry | M20*1.5 |
| 1/2" NPT |
| Protection Grade | IP65 |
| Explosion Proof Grade | ExdIIBT6(Sensor) Exd{ia}IICT4(Transmitter) |
