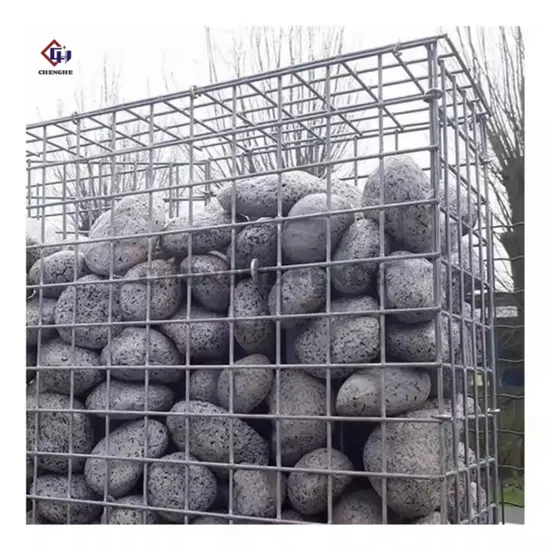

Galvanized Gabion Box 2X1X1 Welded Gabion Basket for River Bank Rock Wall

Product Description

Welded Gabion BoxWelded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions. In more applications, the welded gabion box can be made into different sizes and shapes for decoration applications. They can be made into gabion pot, staircase, table and bench, postbox. It can also be used to form particular landscapes, such as waterfall, fireplace and decorative wall.
Gabion Basket Specifications: 2mx 1mx 1m, 3mx 1m x 1m, 4m x 1mx 1m, 2m x 1m x 0.5m, 4mx 1m x 0.5m, etc. Can also be produced according to customer requirements. The surface protection state is hot dip galvanized, galvanized aluminum alloy, coated PVC and so on.
Hole Size: 60*80mm,80*100mm,100*120mm,etc. The length of the double-wire twisted part shall not be less than 50mm to ensure that the metalcoating and PVC coating of the twisted part of the steel wire are not damaged.
Wire Diameter: Stone cage mesh is divided into three kinds of wire diameter - mesh wire, edge wire, tie wire. The range of the mesh wire is 2mm-4mm. The edge wire is generally larger than the net wire, 0.5-1.0mm thicker than the net wire. The binding wire is generally smaller than the mesh wire, and the most common is 2.2mm.
Wire Tension: Not less than 38kg/m2 380N/mm.
Welded Gabion Box

Wire diameter/mm	Aperture/mm	Box size/Length*Width*Height/cm	Surface Treatment
3, 4, 5	50x50, 50x100, 75x75	30x30x60, 50x50x50, 50x50x100, 50x50x200, 100x100x100, 100x200x200 etc	Hot dipped galvanized;Electro galvanized ;PVC coated.
4, 5, 6	50x100, 50x200, 100x100
5, 6, 8	50x200, 100x100
4/4/4 double wire	50x100, 50x200	Length and height according to your require, thickness could be 30cm, 50cm etcUsed for fence
5/4/5 double wire	50x100, 50x200
6/5/6 double wire	25x200, 50x200

&DeliveryWelded Gabion is made of welded wire mesh panel, it is assembled with a spiral-shaped wire to assemble the front and rear panels, the bottom plate and the partition after welding, and is packed together with the mesh cover. All the caged products that are folded and tied are an independent individual. Welded gabion basket is manufactured from cold steel wire for tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded Gabion basket and welded PVC Gabion basket. Gabion basket are designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to with- stand the forces
generated by the retained soil.
Material introduction:
(1)Galvanized steel wire: high quality low carbon steel wire, the diameter of the steel wire2.0MM-4.0MM, the tensile strength of the steel wire is not less than 380Mpa, the surface of the steel wire is protected by hot dip galvanizing, the thickness of the galvanized protective layer is made according to customer requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum (10% aluminum)-mixed rare earth alloy steel wire: ( also called Golfan) steel wire, which is an international emerging a new material, corrosion resistance is more than 3 times that of traditional pure galvanized, the diameter of the steel wire can reach 1.0MM-3.0MM, the tensile strength of the steel wire is not less than 1380Mpa.
(3) Galvanized steel wire coated: high-quality low carbon steel wire, a layer of PVC protective layer on the surface of the steel wire, and then woven into various specifications of hexagonal nets. This layer of PVC protective layer will greatly increase the protection in the highly polluted environment, and through the choice of different colors, it can be integrated with the surrounding environment.
Characteristics:
(1) Economic:just fill the stone into the gabions and seal it
(2)Simple installation: no special technology needed
(3) Weather proof under natural destroy, corrosion resistant
(4)No collapse even under big scope of deforming
(5) Sludge in the stones is good for plant growing
(6) Good permeation can prevent the damage by hydrostatic
(7)Less transport freight. It can be folded together for transport and further installation ApplicationWelded gabion mesh is widely used, mainly for park landscape modeling, building exterior walls, and outsourcing of commercial building. The welded gabion has simple construction, beautiful structure, low cost, easy installation and durability. It is an ideal choice for garden decoration and slope protection and greening. Welded Gabion Applications:Retaining wall structures Prevention of current scout and erosion control Bridge protection Hydraulic structures, dams and culverts Embankment protection Rockfall prevention and soil erosion protection

Protective Applications:	Landscape Constructions:
• Retaining wall	• Gabion bench
• Slope protection	• Gabion planter
• River channel controlling	• Fireplaces
• Defense barrier	• Gabion staircase
• Noise barrier wall	• Gabion pot
• Bridge protection	• Gabion partition wall
• Soil strengthening	• Gabion barbecue
• Seawall protection	• Gabion waterfall
• Flood controlling	• Gabion flower pot

Packing & DeliveryPackaging details:
1.Standard exporting package
2.As per customized specifications such as logo or others
FAQ:
1.What can you buy from us?
Steel fence, Temporary fence, Chain link fence, Welded fence panel ,Airport fence, Anti- climb fence,Security fence,Farm fence,Palisade fence, Hexagonal wire mesh,Barbed wire and other kinds of wire mesh products.
2.Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
3.Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
4.How to guarantee the quality of your products?Strict detection during production.Strict sampling inspection on products before shipment and intact product packaging ensured.
5.can you provide the samples?
Samples can be provided with samples' charge and courier fee by the buyer's side.
6.What's your payment terms?
T/T or L/C at sight
7.how do you ship the goods and how long does it take to arrive?
A: The steel products always delivery by sea, container or bulk according to customers' request, the shipping time is different to different destination, which we could check the approx. time for you if you need.
8.can you accept customized?
A: Yes. It can be customized as per the customers' request.

---
