| US$2,300.00-2,700.00 | 1 Piece (MOQ) |

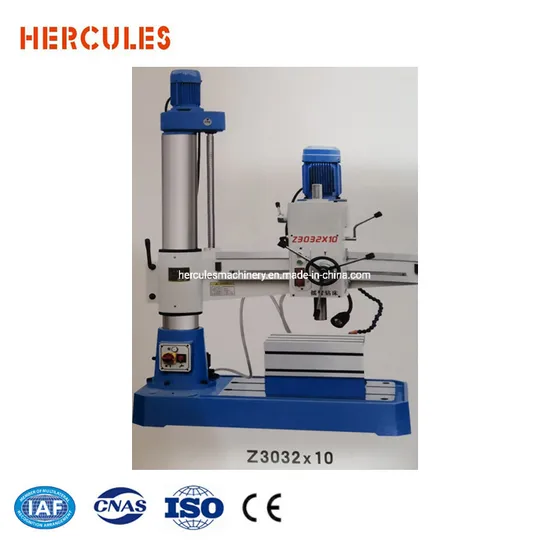

| Specification | Unit | Z3032x10 |
| Max. Drilling dia. | mm | Iron 32 Steel 27 |
| Distance from spindle nose to table | mm | 220-980 |
| Distance from spindle nose to table | mm | 260-1000 |
| Spindle travel | mm | 120 |
| Spindle cone | MT4# | |
| Spindle speed range | r/min | 108-1000 |
| Spindle speed step | 6 | |
| Spindle feeding range | mm/rev | / |
| Spindle feeding step | / | |
| Rocker rotary angle | deg | 360 |
| Main motor power | kW | 1.5 |
| Movements motor power | kW | 0.75 |
| Machine dimensions | mm | 1235*600*1780 |
| Machine weight | kg | 800 |
| Hercules Machinery Equipment Ltd. | ||
