Basic Info.
Lifting Capacity
1t to 30t
Fixed Form
Raw Material for Sling
Lifting Eye Type
for Webbing Sling
Certification
GS, CE, ISO 9001
Sling Color
En 1492-2 or White
Quality Insurance
Global Liablity Insurance
Quality Control
Lote Testing Report
Packing
Roll or Stacked on Pallet
Transport Package
Shrink Packing/Carton/Pallet
Production Capacity
1000000PCS/Year
Product Description

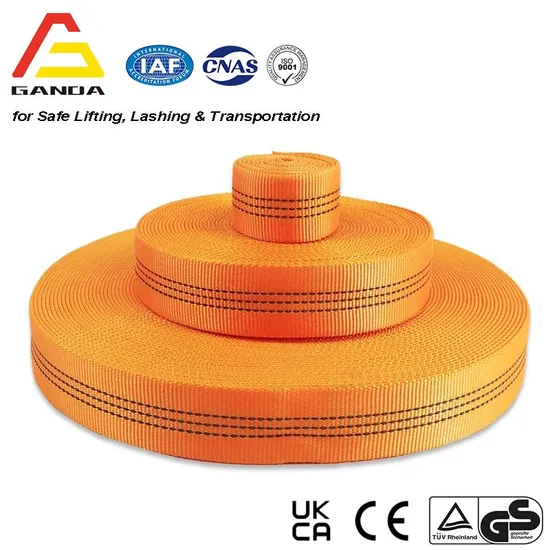

G&A Group( GANDA) can supply a full range of webbing material for sewing all kinds of webbing sling to you.
Material: 100% Polyester
Width: 1" to 4" (ASTM), 25mm to 300MM
Webbing material for difference safety factor duplex eye-eye and single endless webbing sling
According to EN1492-1,JB/T8521.1,AS1353.1
| | WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 1,000kgs | 5:1 | 25 | Violet | 3125 |
| 1,000kgs | 6:1 | 25/38 | 3750 |
| 1,000kgs | 7:1 | 30/50/60 | 4500 |
| 1,000kgs | 8:1 | 50 | 5000 |
| |
| | WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 2,000kgs | 5:1 | 50 | Green | 6250 |
| 2,000kgs | 6:1 | 50 | 7500 |
| 2,000kgs | 7:1 | 60 | 9000 |
| 2,000kgs | 8:1 | 65 | 10000 |
| |
| | WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 3,000kgs | 5:1 | 75 | Yellow | 9375 |
| 3,000kgs | 6:1 | 75 | 11250 |
| 3,000kgs | 7:1 | 90 | 13500 |
| 3,000kgs | 8:1 | 95 | 15000 |
| |
| | WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 4,000kgs | 5:1 | 100 | Grey | 13000 |
| 4,000kgs | 6:1 | 100 | 15000 |
| 4,000kgs | 7:1 | 120 | 18000 |
| 4,000kgs | 8:1 | 120 | 20000 |
| |
| WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 5,000kgs | 5:1 | 125 | Red | 15625 |
| 5,000kgs | 6:1 | 125 | 18750 |
| 5,000kgs | 7:1 | 150 | 22500 |
| 5,000kgs | 8:1 | 150 | 25000 |
| |
| WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 6,000kgs | 5:1 | 150 | Brown | 18750 |
| 6,000kgs | 6:1 | 150 | 22500 |
| 6,000kgs | 7:1 | 180 | 27000 |
| 6,000kgs | 8:1 | 180 | 30000 |
| |
| WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 8,000kgs | 5:1 | 200 | Blue | 25000 |
| 8,000kgs | 6:1 | 200 | 30000 |
| 8,000kgs | 7:1 | 240 | 36000 |
| 8,000kgs | 8:1 | 240 | 40000 |
| |
| WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 10,000kgs | 5:1 | 250 | Orange | 31250 |
| 10,000kgs | 6:1 | 250 | 37500 |
| 10,000kgs | 7:1 | 300 | 45000 |
| 10,000kgs | 8:1 | 300 | 50000 |
| |
| WLL for Sling | Safety Factor | Width(mm) | Color | M.B.S.(kg) |
| 12,000kgs | 5:1 | 300 | Orange | 37500 |
| 12,000kgs | 6:1 | 300 | 45000 |
| 12,000kgs | 7:1 | 300 | 54000 |
Please let us know the following information before we could offer price:1. Capacity and Effective Working Length of ths Sling
2. Model of the sling, Webbing Sling with Lifting Eyes, Roundsling, Endless Webbing Sling Etc.
3. Your Estimated Quantity
4. Price Terms: FOB or CIF, if CIF, Please Advise us the Delivery Por
>>
