Chemical Reactor / Reaction Kettle / Decomposition Pot / Polymerized Kettle / Dehydrogenation Reactor / Saponification Kettle for Chemical Factory

Product Description

1. Product Description
Reaction kettle is pressure container, which is mainly applied to following technological process: Oil / Polymerization / Chemical / Rubber / Pesticide / Dye / Medicine / Food, and it is used to complete the sulfide / nitration / hydrogenation, alkylation and condensation. Such products as Reactor / Reaction kettle / Decomposition pot / Polymerize, and its material is always Carbon manganese steel / stainless steel / zirconium / nickel base (hartz, monel, inconel nickel) alloys and other composite materials.
2. Product Materials
The company can design and manufacture various kinds of pressure vessel and non-standard products. The related raw materials are as follow:
1) carbon steel, such as:Q235,10#,20#,Q245R etc;
2) Ti, such as:TA1,TA2;
3) Low alloy low temperature steel, such as:16MnDR,09MnNiDR,15MnNiNbDR etc;
4) Duplex stainless steel, such as:2205,2505;
5) Low alloy strength steel, such as:Q345R,Q370R,13MnNiMoR,20MnMo etc;
6) Various kinds of stainless composite plate, Ti composite plate, etc;
7) Austenitic stainless steel, such as:S30403,S30408,S31608,S31603,S32168,S31008 etc;
8) Low alloy heat resistant steel, such as:12Cr1MoVR,15CrMoR etc;
3. Company Profile
1) Yangzhou Giant Machinery Co., Ltd. is located in the cultural ancient city of Yangzhou Guangling Economic Development Zone. The company is mainly committed to research and development of LNG cryogenic storage tank, LNG skid-mounted filling station, LNG/L-CNG natural gas filling station, cryogenic industrial gas storage tank, petrochemical equipment etc., which is a professional company integrating design, manufacturing and engineering installation. The company has Other High-pressure Vessel (A2) special equipment production license, Industrial Pipe Installation (GC2) special equipment production license and ASME "U" "T" stamp issued by the American Society of Mechanical Engineering. The company mainly produces various types of cryogenic storage tanks, LNG liquefaction plant vessels, LNG/CNG gas filling station equipment, reaction vessels, heat exchangers, towers, non-standard vessels and engineering. Products are widely used in natural gas new energy, petrochemical, coalification, electric power, metallurgy and other fields.
2) The company has more than 300 employees, includes 6 senior engineers, 25 engineers, 30 assistant engineers and 60 other technical employees. The total fixed assets is CNY 350 million.
3) Lifting capacity for single is 100 ton, and bending capacity is 3500mm×150mm. Other more than 300 equipments include cutting, forming, welding, forging, testing, inspection, heat treatment, sand blasting, lifting and transportation. Handling capacity of metal material is around 50,000t. Separated working area has been set according to the kind of material like stainless steel, carbon steel, titanium alloy steel. We have been upgrading the quality of products and service depending on the experienced technical strength, advanced producing process, thorough inspection methods, strict management system and excellent after sales services.
4) Due to the hard working of all staff and the concern of customers and friends, we have been the member of Sino pec 1st class network supplier (No. 41489520), member of China National Chemical Corporation suppliers, member of China Industrial Gas Association, member of China Storage Association, and State High-tech Enterprise, etc.
5) By the concept of industrial contribution and harmonious with nature society, YangZhou Giant Machinery Co., Ltd is open to leaders and friends of all society to win the future together.
4. Fabrication Workshop
5. Main Manufacturing Equipment

List of Main Manufacturing Equipment
No.	Equipment Name	Qty. (Set)	Max. Capacity or Code	Using Date
1	Veneer Reeling Machine	8	Max. Thickness: 3200×150 (mm)	Sep. 2015
2	Traveling Crane	47	Max. Lifting: 100 T	Jan. 2010
3	Lathe	7	CQ-5240, Max. Dia.: 4000 mm (Vertical)	Sep. 2012
4	Drilling Machine	4	GPB-4040, Max. Drilling: δ250mm Ф60mm (NC)	May. 2013
5	Plate Shearing Machine	1	Max. Thickness: 12 mm	Aug. 2016
6	Edge Planning Machine	1	Length: 12 m	Dec. 2012
7	NC Gantry Cutting Machine	2	GSII-4000, Cutting Thickness: 6-100 mm	Mar. 2014
8	Manual Welding Machine	80	ZX7-400	Mar. 2017
9	Automatic Submerged-arc Welding Machine	8	FDC-1000	Mar. 2015
10	Surfacing Welding Machine with Pole	1		Jun. 2015
11	Argon Arc Welding Machine	20	WS-400	Mar. 2015
12	Air Gouging Welding Machine	8	ZX5-630 ZX5-1000	Jan. 2013
13	Plasma Cutting Machine	6	KLG 160	Mar. 2014
14	Vacuum Pump Units	62		Jun. 2016
15	Airless Paint Sprayer	6	PT9C-2539	Sep. 2015
16	Heavy Mobile Shot Blasting Machine	1	SD1-1	Jan. 2016
17	Furnace for Heat Treatment	1	24m×8m×9m	Jul. 2015

6. Main Test Equipment

List of Test Equipment
No.	Equipment Name	Qty. (Set)	Function	Using Date
1	Portable Gas Detection & Alarm Device KP810	1	Gas Concentration Detection	Aug. 2016
2	Smart Barometer LTP-203	1	Atmospheric Pressure Measurement	Mar. 2017
3	Laser Range Finder PD-54K	1	Measure Distance	May. 2013
4	Roughness Tester TR100	1	Check Roughness of Polishing	Jun. 2012
5	Ultrasonic Thickness Meter LEEB321	1	Measure Thickness of Material	Mar. 2012
6	Ultrasonic Thickness Meter TT100	1	Measure Thickness of Material	Aug. 2017
7	Computerized Film Thickness Meter MCH-200L	1	Measure Surface Paint Thickness	Apr. 2013
8	Coating Thickness Meter TT220	1	Measure Surface Paint Thickness	Mar. 2017
9	Portable Rockwell Hardness Tester PHR-1	1	Check Hardness of Material	Aug. 2013
10	Brovill Hardness Tester JAN-69	1	Check Hardness of Material	Jun. 2013
11	Hydraulic Universal Tester WE-600B	1	Recheck Material and Test Weld Mechanical Property	Aug. 2006
12	Infrared Thermometer HT-816	1	Control Temperature between Weld Layers	Mar. 2016
13	Pulse Spark Leak Detector DJ-6-B	1	Check Lining Quality	Feb. 2013
14	Pendulum Impact Tester JB-300B	1	Recheck Material and Test Weld Mechanical Property	Aug. 2006
15	Impact Tester for Cryogenic DWC-60	1	Impact Test for Cryogenic	Aug. 2006
16	V-type Notch Projector SF-50	1	Impact Test Notch Dimension	Aug. 2006
17	Hand-held Alloy Analyzer XL2 800	1	Analyze Chemical Component of Metal Material	Aug. 2015
18	Helium Mass Spectrometer Leak Detector SFJ-211	2	Check Micro Leak	Mar. 2018
19	Helium Mass Spectrometer Leak Detector ZQJ-230D	1	Check Micro Leak	Aug. 2013
20	Hydraulic Test Pump 4DY-100/10	5	Pressure-tight Test	Sep. 2014
21	Pneumatic Testing Apparatus 2X8	2	Pressure-tight and Air-tight Tests	Aug.2013
22	Strain Hardening System	2	Strength and Reinforcement Tests	Mar. 2017
23	Portable Precision Dew Point Instrument HKT-817	1	Measure Humidity	May 2018
24	X-ray Detective Machine XXH3505	9	Check Weld Defect	Sep. 2015
25	Computer Imaging Scanner (CR) HPX-1Plus	1	Review Photographic Plate	Oct. 2017
26	Nigrometer DM2010	2	Inspect Blackness of Photographic Plate	Aug. 2015
27	Drying Box for Photographic Plate XJG-A	2	Dry Photographic Plate	Aug. 2013
28	Film Viewing Illuminator KT-900	3	Review Photographic Plate	Aug. 2015
29	Ultrasonic Flaw Detector TS-2008L/TTS6208	2	Check Weld Defect	Sep. 2012
30	Ultrasonic Testing Block CSK-IA/CSK-IIA/CSK-IIIA	3	Measure K Value and Probe Front Edge/Make DAC Curve	Aug. 2012
31	Magnetic Particle Flaw Detector	1	Inspect Weld Surface and Near Surface for Defects	Nov. 2016

7. Certificate
8. Stock

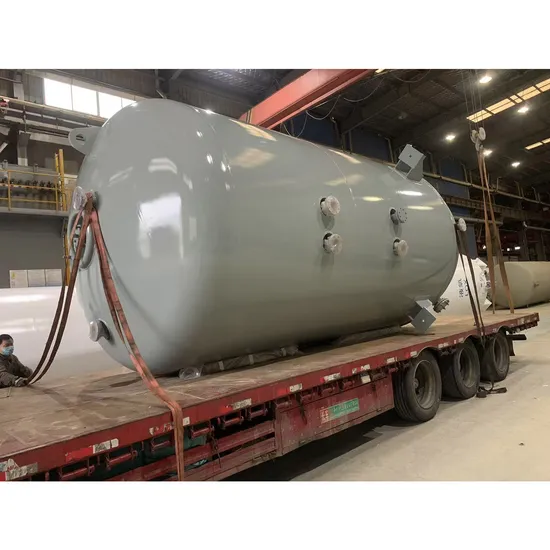

9. Packing and Transportation
10. Project Cases
11. Clients
12. Exhibition

---
