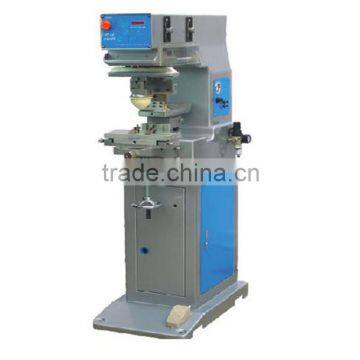

TM-P1 One head one color ink tray pad printer for Camera printing
TM-P1 1 color camera pad printing machine is one of our hottest selling products
Here are some technical datas of this ink tray pad printer
Plate size
| 100X150mm
|
Max worktable size
| 200X120mm
|
Max printing diameter
| DIM80mm
|
Max printing speed
| 1800pcs/h
|
Air consumption
| 91litre/min(5bar)
|
Power
| 110/220V 60/50Hz 50W
|
gross size
| 850X650X1480mm
|
gross weight
| 120kg
|
Machine features:
1. The tempo printer is with microcomputer-controller,semi-automatic, utility function, and the operating procedures are flexible and reliable.
2. The hardened axle can bearing made by famous processor and the SMC Pneumatic Components from Japan are adopted to reduce the repair and maintenance, so that the unit is not worn easily and service life of machine parts are extended largely.
3. It has separated colloid head and is convenient for adjusting the speed of movement back and forth, and is applicable to different printing needs.
4. Base for each inking pan can be adjusted independently at X and Y angle, with accurate chromatograph and improved production efficiency.
5. The body of the unit adopts the die-cast rack of aluminum alloy and is both portable and solid.
6. The safely rubber sheet and emergency cut of system of power supply are provided so as to make unit comply with the international industrial safety standards.
7. The pad printer is with multilevel-controlled, and is satisfied with different requirement of the printing speed.
8. The rolls to inking, easy to install and uninstall, and convenient for cleaning.
9. It is set 4-digit number auto-counter, and is convenient for recording the quantity of the printing products
10. With self-poise oil scraper, can adjusting the thickness of steel independently, scrape oil efficiently.
11. The colloid head is not leave moulage when blank line printing, it is prevent from the printing ink to dry when we pause the machine.
12. The pad printing machine is setting the standard procedure and off-standard program, breakthrough the function of ordinary machine, unlimited program to procure ink and printing.
Machine accessories:
A copy of specification, one set of Allen key, one piece of cross Screw and straight Screw, one piece of scraper, one piece of fuse, 4 pieces of Screw for fixing pad, 1.5 meter of power line.
Payment Terms: TT/LC/ Western Union
Certificates
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products : Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Major market: America market .
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine , UV exposure cliche machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer) ;
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting ;
3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film , Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil , High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp , UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in english, design development use UG, Proe, Autocad, Mastercam ;
6. Import and export business of the above items.
>>
