US$35,000.00-39,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Voltage
220V/380V/400V or Customized
After Service
on-Site Installation
Transport Package
Wooden Package
Production Capacity
300-500PCS/Year
Product Description
Specification List for:
Vertical machine center

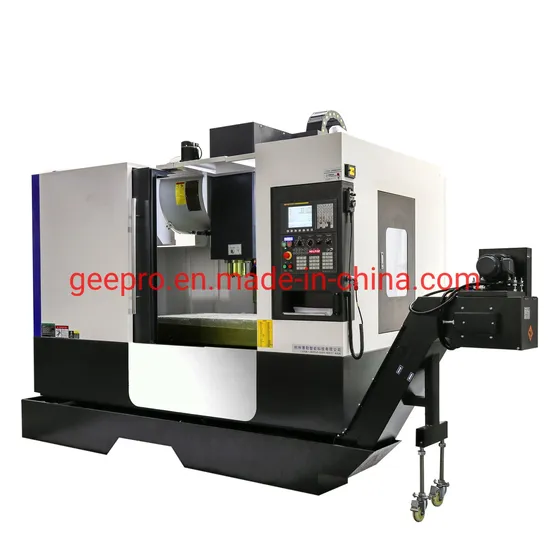

3/4/5 Axis Gantry/Vertical/Horizontal Machining Center CNC Milling Machine
| STANDARD ITEM |
| Standard configuration includes Fanuc Control ( Fanuc 0i-MF with package 5), Fanuc βmotors for 3 axis and Spindle, Vertical Disc Type Magazine with 24-Tools, BT40-8000 RPM Spindle, 3 Axis linear guide rail, Full metal guarding. |
Main Specifications of EM800A CNC Machining Milling Machine
| EM800A | S.A.E. | METRIC |
| Travel |
| X Axis | 32" | 800 mm |
| Y Axis | 20" | 500 mm |
| Z Axis | 20" | 500 mm |
| Spindle Nose to Table | 6"-26" | 150-650 mm |
| Spindle Center to Column Guideway | 22" | 550 mm |
| Table |
| Length | 40" | 1000 mm |
| Width | 20" | 500 mm |
| T-Slot Width | 0.7" | 18 mm |
| T-Slot Center Distance | 4" | 90 mm |
| Number of Std T-Slots | 5 | 5 |
| Table Loading capacity | 882 LB | 400 Kg |
| Table to the Ground | 36" | 900 mm |
| Spindle |
| Max Rating | (10/15) hp | (7.5/11) Kw |
| Max Speed | 8000 rpm | 8000 rpm |
| Max Torque | 54 ft-lb | 72 Nm |
| Drive Mode | Synchronous Belt Drive |
| Taper/Specification | ISO 7/24Taper NO.40 |
| Feed Rate |
| Rapids on X/Y/Z | 1890/1890/1890 IPM | 48/48/48 m/min |
| Max Cutting | 393.7 IPM | 1-10000 mm/min |
| Min Feed Rate | 0.0000394'' | 0.001 mm |
| Axis Motors |
| Drive Mode for X\Y\Z | Direct Inline Drive |
| Servo Motor Speed for X\Y\Z | 3000 rpm |
| Diameter of Ball Screw for X\Y\Z | ø1.6" | ø40 mm |
| Ball Screw Pitch for X\Y\Z | 0.6" | 16 mm |
| ATC |
| Tool Magazine | Vertical Disc Type with Manipulator |
| Capacity | 24-Tools |
| Tool Shank | BT-40 |
| Shank Bolt | P-40T( 45°) |
| Max Tool Diameter(full) | ø3.1" | ø80 mm |
| Max Tool Diameter (no adjacent tools) | ø5.9" | ø150 mm |
| Max Tool length | 11.8" | 300 mm |
| Max Tool Weight | 18 LBS | 8 Kg |
| Tool-to-Tool Changing Time | 2.5 secs | 2.5 secs |
| Dimension & Power Capacity |
| Machine Weight | 11023 LBS | 5000 Kg |
| Machine Height | 101" | 2550 mm |
| Machine Area (Length*Width) | 99"*93" | 2500 mm*2350 mm |
| CP | 20 KVA |
| Precision |
| Positioning Accuracy | 0.000197" | 0.005 mm |
| Repeated Positioning Accuracy | 0.000118" | 0.003 mm |
| MAIN PARTS SUPPLIERS |
| PART NAME | SPECIFICATION | BRAND |
| Control | FANUC-0iMF | FANUC |
| Spindle Motor | ΒiI8/12000 | FANUC |
| Servo Motor for X/Y/Z | βisC12/βisC12/βis22B | FANUC |
| X/Y/Z Axis Linear Ball Guide Rail | 35mm/35mm/35mm | PMI/HIWIN/REXROTH |
| (P class) |
| X/Y/Z Axis Ball Screw | ø40mm/ø40mm/ø40mm | HIWIN/PMI (C3 class) |
| Spindle | BT40-140 | KENTURN |
| Tool Magazine | BT40-24T | OKADA |
| Cam Technology | DEX |
| Approach Switch | Omron |
| Tool Arm | I-Ta |
| Magazine Motor | Taiwan Gong Ji |
| Unclamping Cylinder | | HAOCHENG |
| Coupling Shaft | | REACH |
| Heat Exchanger | | DIORT |
| Electronic Components | | SCHNEIDER/OMRON |
| The power line and encoder line | | German LEONI |
| Cutting Fluid Bump | | STAIRS |
| Bearing for 3 axis | BST30*62 | NTN/NSK (P4 Class) |
| Extensible Cover | | HONGWANG |
| Lubrication Device | | BAOTN |
| Pneumatic Unit | | SMC/AIR.TAC |
| Coolant Pipe | | Bear 20 Bar |
| Assembling Bolt | | Taiwan Brand |
OTHER CNC LATHE MACHINE WHAT WE CAN SUPPLY .
Also Focus on Laser Sheet Metal&Pipe Cutting Machine For Sale
1.Three axis line rail: X / Y-axis ball rail line, Z-axis roller rail line, less friction, shortening the movement time, improving the efficiency; meanwhile, high precision processing can be completed by the excellent repeating positioning accuracy. 2.Z-axis drive without counterweight: Z-axis with brake type servo motors, non-counterweight design, for batch processing of high-speed drilling and tapping parts. 3.Three-axis direct-type drive design: Three-axis motor and screw with direct-type drive design, no noise from the belt or gear without backlash and vibration problems, three-axes rapid movement up to 48m / min, greatly saving the non-processing time. Application:
Suitable for: telecommunications,medical equipment,automobile parts,molds,3C products processing
>>
