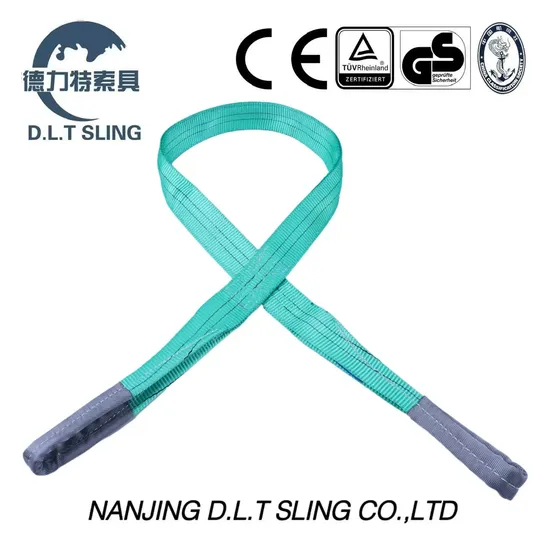

Webbing Sling Double Ply Sf7: 1

Product Description

Webbing sling is produced from top quality synthetic fibre by advanced international level of weaving technology and equipment in various sewing methods. According to customer's requirement, the safety factor of sling has 4:1,5:1,6:1,7:1,8:1, its loading range is from 0.2t to 100t. Which is produced according to International stanard,for color and load capacity.
Advice:
1.Before use, select the correct flat webbing or round sling with regard to its application, capacity and the surface conditions of the load.
2Please examine the condition of the webbing sling or round sling.
3.The permissible capacity of the slingsmust not be exceeded.
4.Never shorten a sling by knotting.
5.Flat webbing slings and round slings must not be placed around sharp edges or over rough surfaces, use wear sleeves and edge protectors where necessary.
6.Flat webbing slings should be applied in such a way, that the carry the load over the full sling width. 7.Loads may only be placed on slings if damage is precluded. Do not drag slings fromunder load, position the sling correctly to ensureeasy removal after use.
8.Position slings in such a way, that they hold the load securely.
9.In "chokef" lifts, only use flat webbing sling with rein forced eyes.
10.Using flat webbing slings with eyes, the eye opening angle should not exceed 20.at the connecting point.
Conformity EC Council Direcive 2006/42/EC Machinery

S.F	6:1			7:1			8:1
WLL(kg)	Stock No	Width	M.B.S	Stock No	Width	M.B.S	Stock No	Width	M.B.S
1000	EE 6010	25/38mm	6t	EE 7010	30/50mm	7t	EE 8010	50mm	8t
2000	EE 6020	50mm	12t	EE 7020	60mm	14t	EE 8020	65mm	16t
3000	EE 6030	75mm	18t	EE 7030	90mm	21t	EE 8030	95mm	24t
4000	EE 6040	100mm	24t	EE 7040	120mm	28t	EE 8040	120mm	32t
5000	EE 6050	125mm	30t	EE 7050	150mm	35t	EE 8050	150mm	40t
6000	EE 6060	150mm	36t	EE 7060	180mm	42t	EE 8060	180m	48t
8000	EE 6080	200mm	48t	EE 7080	240mm	56t	EE 8080	240mm	64t
10000	EE 6100	250mm	60t	EE 7100	300mm	70t	EE 8100	300mm	80t
12000	EE 6120	300mm	72t	EE 7120	300mm	84t	/	/	/
MEMO	JB/T8521.1			EN1492.1			AS1353

Detailed Photos

---
