Ou Yi Gang Surface Polishing Plate with Water and Oil Sanding Finishing No. 4 Finishing

Product Description

Equipment Features :
1) Multi head brushing station, "all in one line " equipment with No.4-No.6 , Scotch-Brite , Hairline finish
2) Control by PLC complete with touch screen
3) Most of the inside construction is made of tempered stainless steel
4) Horizontal axis rotating and oscillating system
5) Soft, bright and homogeneous surface appearance
6) oil and water mixed ,wet type processing
7) Adjustable brushing pressure
8) Adjustable brush speed
9) Easy abrasives brush roller replacement
10) Adjustable conveyor speed (belt / roller)
11) Different brush grits combinations are possible to perform different surface treatment
12) Emergency security switch
13)Reversal conveyor speed for emergency control

Basic specification for the machine:

Belt abrasive station	No.4	/	Hairline
Brush abrasive station	/	SB	/
System	Wet roller grinding	Wet roller brushing	Wet roller grinding
No. of working unit	2-3 grinding heads	2-4 polishing heads	2-3 grinding heads
Machine weight	Appro 13T	11T	13T
Working width	900,1250,1500mm, , customized available
Sheet size	1250X2500mm 1550X3000mm customized available
Sheet thickness min / max	0.3-4mm	0.3-4mm	0.3-4mm
Roller dimensions(Od X width)	300mm	350mm	250mm
Abrasive belt width	Depending on the sheet width
Abrasive belt length	2620mm	/	2620mm
Speed of the line	6-25M/min	6-25M/min	6-25M/min

Product Description

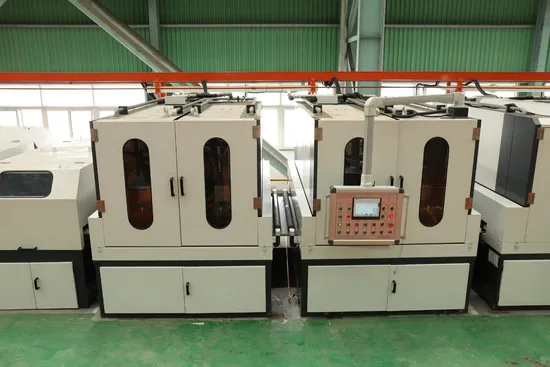

No.4 satin machine for the

The polishing of coils and sheets is one of the most value added operations offered by service centers.
Perfect machinery is the key to success in every business, OUYIGANG grinding/ polishing machines are very easy to achieved Matt, Hair -Line, Satin, No.4,No.6 finish.
OUYIGANG Metal Surface Polishing Machines can be applied to the top surface of coils and sheets. We are the leading company in the metal processing equipment , our machine cover more than 70% of the Chinese market and is going to meet the worldwide challenge with its extraordinary performance and innovative technology.
Processing capability

No.4 finish
The basic sheet selection is to be of 2B or BA sheet and should be preferably polished with 150#,180# abrasive belt. The application verticals of this finish to name a few are in cookware, furniture, elevator, architectural decoration, revolving door, exterior decoration etc,.
Picture show:
a) The plate after polishing- check the roughness
b) The plate after polishing-check the glossy
Our Services
Before the install, we check the stainless steel polishing machine for the stainless steel sheet and coil, we have checked the quality and parameter of the part, based on the CAD specfication.
The QC will check with the stainless steel polishing machine technique of the structure and the fitting of the part in the whole manufacturing.
After-sale service: We supply technique service to our customer and charge basic cost for comsumable parts. Install the machine in the filed, practice the user to operate the line and the daily maintain.
Company Information

FOSHAN OUYIGANG engaged in design and manufacturing the stainless steel surface processing machinery,the factory of OUYIGANG occupies above 12000 square meters, we are the high-tech company of more than 15years production history, which gather science research,design,produce,sale install,adjust and maintenance.
Our company culture: loyalty,dedication, hard-work and cooperation
Company philosophy:Constant cooperation and mutual benefit, to create greater value for our customers.
Our service concept: Your little case is our big events.
The miss of our company: To pursuit perfect quality, then provide professional service.
Company vision: Building one centennial corporation, setting one international brand.
Company core value:
observe disciplines and obey laws
Conscientious and love in work
diligent and eager to learn
Cooperation and innovation

FAQ
Q1. How to get the most suitable polishing machine and best price
A: Please tell the material you want to working on? and the specification of your working material?
(Length? Width? Thickness?)

Q2. Do you have the manual of the polishing machine Except the automatic machinery?
A: Yes, we have.

Q3. If we don't know how to use the polishing machine, can you teach us?
A: our customer support engineer will go to cutomer's factory to install the machine , and they will teach the
skilled labor complete knowledge about the machine.

Q4. Do you have the machinery applying to the special steel sheet?
A: When the sheet thinckness comes to 4mm and more then 4mm, or there is some special performance to your sheet, it is suggested that the customer come to our company talk about the technical requirement with our engineers.

Q5. What is the useful life of your machine?
A: The useful life of the equipment depend mainly on the maintainability, and our machine can be used for more then 6 years ,most of it come to above 10 years under normal operation and maintenance.

Packaging & Shipping
Packaging: all of the machine, equipment and spare parts spray the rust proof oil, cover with oil paper and plastic film.
Shipping: arrange technical workers to load the machine with crane , fixed the machine to the container with strong steel rope, and guarantee your machine shipped to your port without any human causing damage.
Contact us
Address detail :No. 2 of area 6, Jianye four road, Gangbei industrial zone, Shizhou village,Chencun Town, Shunde District.
City: FoShan
Province:GuangDong
Country:China(Mainland)
Website: ouyigang.en.made-in-china.com

---
