Small Hole EDM Machine Bmd703-400CNC

Product Description

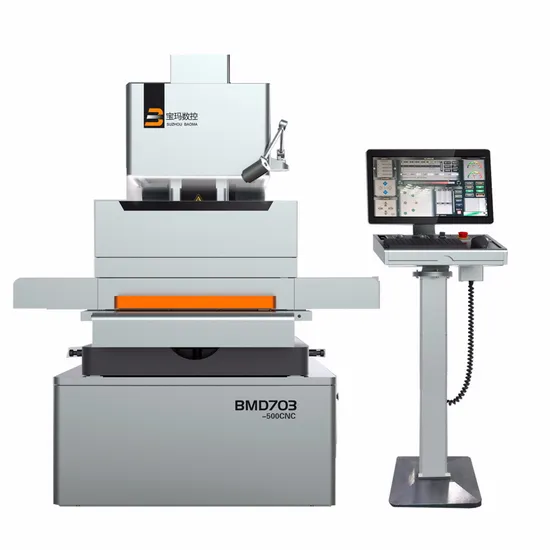

BMD703-500CNC
BMD703-400CNC
INTRODUCTION:
1.Control system with BAOMA independent intellectual property, can prepare a new program during drilling
2.LAN port connection more stable and easy to troubleshoot and maintenance.
3.Internet + function can remote monitor drilling condition.
4.UG\SOLIDWORKS\AUTOCAD software can be used for programming
5.Professional and efficient digitized High Frequency system can real time monitor the drilling condition and adjust the HF power to improve the drilling efficiency.
6.Intelligent database based on a large number of testing for different machining requirement and can be upgraded for free.
7.LED hand remote control box with coordinate display function.
8. Basic function of control system
a.Operation and input: touch screen, keyboard and mouse.
b.absolute coordinate,6 relative coordinates facility for positioning and machining.
c.Function of drawing coordination conversion, zoom, rotation, tracing and displaying.
d. Auto Short circuit manage function
e.Memory function, Auto stop once finishing, stop point setting functions
f.Auto edge fining, centering function
g.Process path program, interpolation function
h.Menu technology, Auto program function
i.G code and other files management, Internet date transfer, flash disc reading
j.Auto-repair the electrodes.
k.Gap servo follow function
l.Auto clear Z axis, depth setting function
m.Function shift manual or CNC mode machining.
BMD703-500CNC
BMD703-400CNC
1. LAN PORT FOR INTERNET FUNCTION
2.Real time monitor for operation and modification of parameters.
3. Linux operation system, control system build in IC of control module with Libre CAD drawing software. Auto transfer between drawing and points machining by convert software. New program can be prepared during machining.
4.Auto edge finding, centering, coordinate setting, original finding, transfer between absolute coordinate and relative coordinate, DXF file reading generated by UG\SOLIDWORKS\AUTOCAD and changing to points machining. G code can be read. Databases function.

Specification BMD703-400CNC Universal Parameter

Work table Size	466x 330 mm	Drilling Depth	0 - 300 mm
Work Table Travel	400 x 320 mm	Z axis Travel	300+(320) mm
Load of Table	300 Kg	Max. Drilling Speed	60 mm2/min
Electrode Diameter	0.2-3.0 mm	Max. Working Current	30 A
Water Tank Capacity	30 L	Max. Power comsumption	3.5 KVA
Machine Weight	1500Kg	Voltage	220-415V / 50HZ
Machine Dimensions	1217 x 1251 x 1970 mm	Working Solution	Water/Saponification
Packing Dimensions	1430 x 1340 x 2000 mm	Function of setting depth	Yes
Control Type	X.Y.Z axis CNC Control	X.Y.Z axis travel control	Electric Motor

---
