US$19,000.00
|
18,000 Pieces
(MOQ)
|
Basic Info.
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Automatic Grade
Automatic
Certification
CE, ISO 9001
Max. Machineable Bar Dia.
12mm
Max. Face Drilling Dia.
7mm
Max. Face Tapping Dia.
M6
Main Spindle Max Speed
6000rpm
Main Spindle Index
C Axes(Continuation)
Rapid Moving Speed(X1/Y1/Z1/X2/Z2)
20/24/24mm
Repeat Positioning Accuracy
0.003
Axial Drilling Tool(Fixed Type)
4 Position Er11
Radial Type Live Tool
3 Position Er11
Radial Type Live Tool Max Speed
5000rpm
Transport Package
Plywood Case
Specification
2300*1300*1750
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Single spindle Swiss Automatic cnc lathe machine
- Dual spindle,total 5 axes
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
-Adopt high precision built-in electro-spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity
and good precision retention,spindle flop≤2μm
- Adopt JAPAN THK brand high precision ball screw and linear guideway

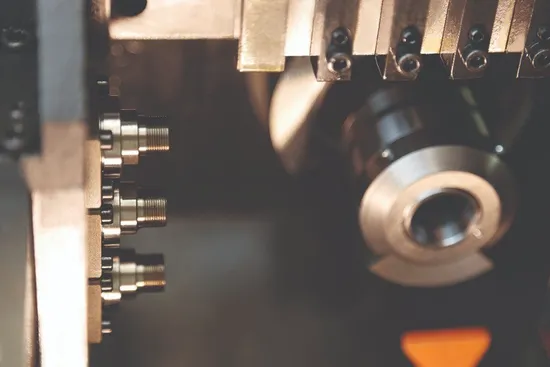

- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:
| Item | Unit | BL-CSL123 | BL-CSL203 |
| Max. machineable bar dia. | mm | Φ12 | Φ20(opt.:25) |
| Main spindle bore | mm | Φ16 | Φ25(opt.:27) |
| Max. machineable length | Fixed guide bushing | mm | 140(one time feed) | 200 |
| Rotary guide bushing | mm | 50(opt.) | 180(one time feed)(opt.) |
| Guide bushless | mm | N/A | 50 |
| Max. face drilling dia. | mm | Φ7 | Φ10 |
| Max. face tapping dia. | mm | M6 | M8 |
| Main spindle max. speed | rpm | 6000 | 8000 |
| Main spindle motor | kw | 2.2 | 4.2 |
| Main spindle index | / | C axes(continuation) |
| Rapid moving speed(X/Y/Z) | m/min | 20/24/24 |
| Spindle flopping | mm | ≤0.002 |
| Repeat positioning accuracy | mm | ≤0.003 |
| O.D. tool | mm | 5 position 10 | 5 positon 12 |
| Axial drilling tool(fixed type) | / | 4 position ER11 | 5 position ER16 |
| Radial type live tool | / | 3 position ER11(opt.) | 2 position ER11+2 position ER16 |
| Max. radial drilling dia. | mm | Φ6(opt.) | Φ8 |
| Radial type live tool speed | rpm | 5000(opt.) | 5000 |
| Coolant pump | kw | 0.22 |
| Overall size | mm | 1510×1000×1660 | 1600×1250×1760 |
| N.W. | kg | 1300 | 2100 |
Main parts list:
| Item | Brand |
| CNC controller | TAIWAN-SYNTEC |
| Servo electro-spindle | TAIWAN |
| Servo motor&driver | TAIWAN-SYNTEC |
| Spindle encoder | TAIWAN-SYNTEC |
| Spindle bearing | JAPAN-NSK/NTN P4 class |
| Ball screw bearing | JAPAN-NSK/NACHI |
| Ball screw | TAIWAN HIWIN/JAPAN-THK |
| Linear guideway | TAIWAN HIWIN/JAPAN-THK |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Lock nuts | TAIWAN-YINSH |
| Shaft coupling | GERMANY-KTR |
Standard configuration: - SYNTEC 220TB CNC controller - Single spindle - Parts catcher& convey belt Optional configuration: - High pressure coolant system - Oil mist collection system - Automatic chip conveyor - Automatic bar feeder Other models choice:
