Industrial Conveyor Tunnel Microwave Dryer Sterilization Equipment Black Soldier Fly Bsf Larva Maggots Tenebrio Molitor Drying Dryer Machine

Product Description

Introduction
Industrial Microwave Drying Sterilization Equipment Conveyor Belt Dryer Machine is a new type of drying equipment with high production efficiency and low operating cost. It is also an efficient and environmental friendly energy-saving equipment; especially for foods that contain bactericidal and fresh-keeping functions while drying. This equipment has been widely involved in the pharmaceutical, food, chemical, building materials and other industries.

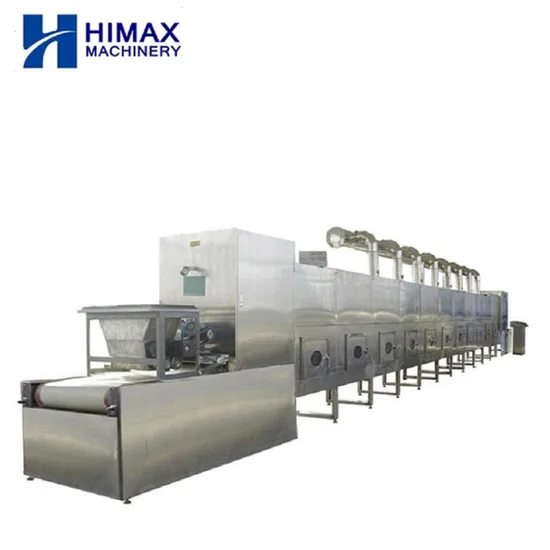

HIMAX series tunnel microwave dryer is a multi-tube tunnel microwave machine consisting of microwave heater, microwave generator, microwave suppressor, mechanical transmission mechanism, exhausting and dehumidifying system and automatic control system. The main components of the equipment are all Made of 304# stainless steel, it conforms to the GMP standard of pharmaceutical equipment. The whole machine adopts modular design, easy to clean and easy to operate.Microwave Big Capacity Industrial Cigar Cigarettes Microwave Dryer Dehydration Tunnel Tobacco Microwave Oven
How does microwave dryer machine work?
When the equipment running, the microwave is first generated by the microwave generator, and the feeding device is input into the microwave heater; the material is sent to the microwave heating chamber by the transmission system, and the moisture in the material is heated and evaporated under the action of the microwave energy, and the water vapor passes. The dehumidification system is eliminated to achieve the purpose of drying. The bacteria in the material are killed by the biological and thermal effects produced by the microwave electromagnetic field. Since the microwave acts directly on the material, the drying temperature is low and the speed is fast, and the loss of the active ingredient in the material is small.
Application of industrial microwave drying machine dryer
1.chemical material,medicine tablet or pill,such as watered pills,honey bolus,honeyed bolus,condensed pill and Tibetan pill,etc
2.all kinds of teas,herbs, flowers, green leaves,etc.
3.various dried meat, like beef, pork, chicken,duck, fish etc.
4.powder for various material,such as spices, other food additives.
5.agricultural products,such as china date,nuts,grains,peanut,etc
6.snack food, fruit seeds, grains, peanuts, chips,etc.
Below are some examples of use:
Technical Parameter of industrial microwave dryer equipment

Model	HM-20HMV	HM-30HMV	HM-40HMV	HM-60HMV-8X	HM-120HMV-12X	HM-200HMV-18X
Rated Input Apparent Power	≤20kw	≤30 kw	≤40 kw	≤60 kw	≤120 kw	≤200 kw
Microwave Output Power	≥20 kw	≥30 kw	≥40 kw	≥50 kw	≥110 kw	≥180 kw
Work Process Temperature	70~200ºC( Controllable)
Equipment Cooling Method	Water cooling /Air cooling
Inlet And Outlet Height	40~100mm	40~100mm	40~100mm	40~100mm	40~100mm	40~60mm
Transmission Belt Height	600~1000mm
Dehydration Rate	16-20kg/hr	24-30kg/hr	32-35kg/hr	40~50kg/hr	80~100kg/hr	140~170kg/hr
Dimensions (L*W*H)	8640 *1200 *2200(mm)	11000 *1200 *2200(mm)	11000 *1500 *2200(mm)	12500*1600*2200 (mm)	16500*1800*2200 (mm)	24500*1800*2200 (mm)

Features of microwave drying equipment tunnel type microwave dryer
1.No deformed cracking: In tradition drying methods, it has wastes due to distortion, cracking and rot. Microwave infltrates to evaporate the interior moisture in short time and produce a spreading pressure to push moisture comes to the surface quickly.
2.Uniform drying: Its drying result is uniform moisture in horizontal levels of wood is absolutely same. Verically, moisture near surface is higher than the core which is good in aplication.
3.High eficiency and energy saving: Fast drying speed. Uniform and complete drying, no dstortin, no cracking and no hard- ening.Kills insects, insect proof, mould proof, rot proof for long storage time. High eficiency and lower energy about 30%.
Packing And Delivery

Packaging Specification	Outside Pachage:Wooden Packing as Exportand Standard.
Delivery time	20-25days after received 40% of the whole payment.
Shipping forwarding	We can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China

Company Information
Jinan Himax Machinery Co., Ltd. is a professional supplier of food processing machines for 12Years. We have many kinds of machines and production line, such as food extrusion machine, soya meat production line, industrial microwave oven, packaging machine, pet food production importantly, we also provide formulas, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the food processing machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service ,delivery and installation. Based on the clients specific requirement, we also OEM machines for our clients.
Processing Line
Customer Visit
Certificates

Our Srevices
-- Before sale service 1.Provide the free consultation of the equipment. 2.Provide the standard device and the flow chart. 3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment. --Services during the sales: 1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout 2.Welcome to visit our factory or the domestic clients' factory. 3.Inspect the machine before leaving the factory. --After sale services: 1. Oversea install and debug the equipment. 2. Train the first-line operator. 3. Provide the basic formula. 4. Operation/ Service/ Maintenance Manual: Provided In English. 5. 1-2 engineers will be arranged for customer
