Crawler Tumble Belt / Wire Mesh/ Hook Type/ Casting Metal Parts / Gas Cylinder / Auto Parts / Steel Pipe / Steel Plate Shot Blasting Machine

Product Description

Crawler Tumble Belt / Wire Mesh/ Hook Type/ Casting Metal Parts / Gas Cylinder / Auto Parts / Steel Pipe / Steel Plate Shot Blasting Machine
Product Description The main products are: Q32/Q35/Q37/Q69 series shot blasting equipment; large-scale through-type pretreatment equipment and sandblasting room/coating equipment; dust removal equipment, VOCs organic gas treatment equipment; S114B/S116A sand mixer; various alloy steel shots/stainless steel shots/wire cut shots; and alloy wear-resistant parts, shot blasters, rubber tracks, dust bags, filter cartridges and other accessories.

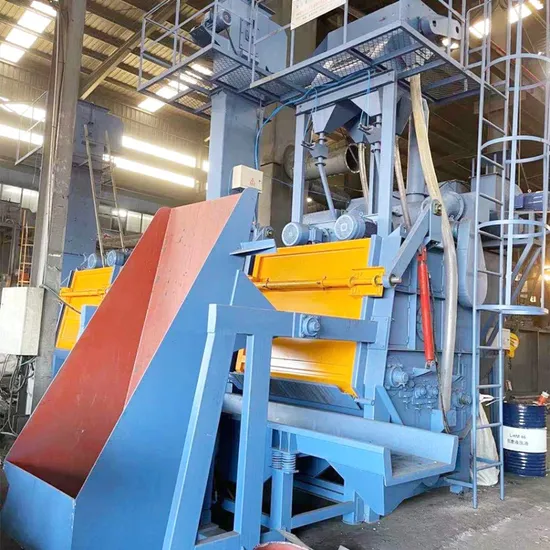

Q32 Series Crawler Shot Blasting Machine
This series of equipment is suitable for surface rust removal or shot blasting of various types and large and medium batches of work pieces. The work pieces must be castings and heat-treated parts with a unit weight of less than 25kg that are not afraid of collision.

Model	Q324	Q326	Q328	Q3210	Q3210(Auto loading)
Capacity	0.3-0.6t/h	0.6-1.2t/h	1.2-2.0t/h	2.0-2.8t/h	2.0-2.8t/h
Max single product weight	5kg	10kg	15kg	25kg	25kg
End plate diameter	Φ400mm	Φ600mm	Φ800mm	Φ1000mm	Φ1000mm
Effective volume	0.05m3	0.15m3	0.2m3	0.3m3	0.3m3
Shot blasting volume	40kg/min	150kg/min	220kg/min	250kg/min	250kg/min
Ventilation volume	2000m3/h	2200m3/h	2600m3/h	3500m3/h	3500m3/h
Total power	≈6kw	≈13kw	≈19kw	≈21kw	≈26kw

Q37 Series Hook Type Shot Blasting Machine

Item	Unit	Q376	Q378	Q379	Q3710	Q3720	Q3730	Q3740	Q3780	Q37100
Single hook lifting weight	kg	600	1000	1000	1000	2000	3000	5000	10000	10000
Shot blasting capacity	kg/min	2X150	2X200	2X200	2X220	3X220	3X250	6X250	8X250	8X270
Separator separation capacity	T/h	25	30	30	30	45	45	60	120	150
Lifting capacity of hoist	T/h	25	30	30	30	45	45	60	120	150
Max single product size	mm	Φ600X1200	Φ800X1500	Φ900X1600	Φ1000X2000	Φ1200X2200	Φ1400X2700	Φ1600X3000	Φ2500X5100	Φ2800X5400
Ventilation capacity	m 3/h	5000	5300	5300	9600	15600	18500	22000	28000	28000
Total power	kw	≈23	≈34	≈34	≈48	≈60	≈67	≈80	≈150	≈180

Q38/48/58 Series Catenary Shot Blasting Machine
Q69 series steel plate and profile pretreatment line
Mesh belt shot blasting machine
For more details, please contact us!
Packaging & Shipping
Company Profile Wuxi Longterm Machinery is an advanced manufacturing enterprise integrating shot blasting/waste gas treatment/coating equipment manufacturing.
Our company has strong technical strength, advanced production equipment, reliable quality, and a professional technical team. It has long-term hired experts from the China Foundry Association and university professors as technical consultants to continuously improve the product
technical content and manufacturing level.
The main products are: Q32/Q35/Q37/Q69 series shot blasting equipment; large-scale through-type pretreatment equipment and sandblasting room/coating equipment; dust removal equipment, VOCs organic gas treatment equipment; S114B/S116A sand mixer; various alloy steel shots/stainless steel shots/wire cut shots; and alloy wear-resistant parts, shot blasters, rubber tracks, dust bags, filter cartridges and other accessories.
With the above-mentioned product quality, preferential prices and perfect after-sales service, our company looks forward to working with you to create brilliance together!
Exhibition
After Sales Service
FAQ Q: What is a shot blast machine?
A: A shot blaster is a machine that controls the flow or stream of fine metal beads as they are forcibly projected against a surface by mechanical acceleration.
Q: What material is used for shot blasting?
A: Types of metal abrasives used in shot blasting include steel grit, copper shots, and aluminum pellets. Other methods of shot blasting use silica sand, glass beads, synthetic materials like sodium bicarbonate (baking soda), and even agricultural materials like crushed kernels.
Q: Will shot blasting remove rust?
A: Shot blasting is the process of abrading the surface of a metal workpiece to remove rust, dirt and other solidified contaminants by hurling a high speed stream of tiny pieces of stainless steel that resemble buckshot. It is capable of deburring, shaping and texturing a surface.
Q: What is the difference between sandblasting and shot blasting?
A: Essentially, the sandblasting process uses compressed air to shoot some form of abrasive media like sand against the product being treated. Shotblasting employs centrifugal force from a mechanical device to propel treatment media upon the product.
In order to help you make an accurate quotation, would you like to share with information below:
1.What is your workpiece and the material and the shape ?
2.The Max.Length/Width/Height of the workpiece and the MAX./MIN.Weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4.The power supply you need(Our China:380V, 3PH, 50HZ)
5.Better to send us the workpiece photo or drawing.

---
