Professional China HDPE PP Plastic Extrusion Blowing Mold Machine Manufacturer Supplier

Product Description

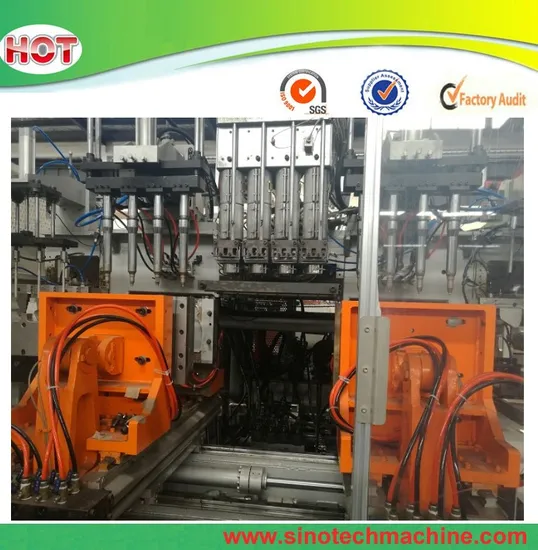

Professional China HDPE PP plastic Blowing mold machine manufacturer supplier
A. Machine model: TCY70II
B. Capacity: Depending bottle shape
C. Suitable products: Pharmaceutical bottle
D. Ball material: PE, HDPE, PP
E. Usage: For drug packing
Auto blow molding machine is link with Germanic technology, we are specializing in producing and selling Plastic blow molding machine, such as plastic bottle, tank, Jerrycans, toolbox, abnormal blow molding piece, motorcar oil box, tray, etc., which is range from 10ML to 220L.
We supply single, double, multi-mould and single, double layers, multi-layers composite mould according to the customers requirements. We have lots of experiences in this line for ten years, we possess large number of skilled workers and technical stuffs which has fruitful practice experience, and also they have assembling` and servicing for more than two thousand consumers.

Basic parameter	Material	PE.PP...
	Max.product volume	5L
	Cycle time	300pcs
	Measurement	LXWXH=3.5x2.2x2.8 (meter)
	Weight	6T
	General power	33.9KW
	Average power consumption	22KW/H (The is the exactly power consumption)
Plasticizing system	Specification	extrusion system can be applicable to various of raw material, plasticizing capability is good and output is high,transducer adjust speed,collect temperature-control signals and prevent the screw from cold starting
	Speed reducer	hard-teeth, low noise and wear-resistant speed reducer
	Machine barrel screw	Ø70mm,L/D=24, 38CrMoALA high quality nitriding steel
	Plasticizing	85Kg/H(HDPE)
	Heating zone	4 zone
	Heating power	16KW/H
	Extrude motor power	three phase a synchronism(380V.50HZ)
	cooling fanner	4 zone power:85W
Extrusion system	Specification	Patented central material feeding mold head that is quick in changing colors
	Die head	40Cr high quality nitriding steel
	Structure of die head	Shan Tou
	Mold center distance	--
	Max diameter of die heat	Ø145mm
	Heating zone	4 zone
	Heating power	16KW
Opening and clamping mold	Specification	Gear wheel and rack in-phase aim at twin shaft clamping device and cylinder
	clamping force	105KN
	Distance of mold platen	188-538mm
	mold platen dimension	WXH:338x450mm
	Max mold dimension	WXHX:450x500
	mold fix mode	bolt compaction
Electric control system	Specification	PLC.colo.touch screen,standardization blowing shaping machine control system (MITSUBISHI programmable controller)
	human-machine	color touch screen,trouble auto alarm, diagnose the system
	Temperature control	self-regulation
	Temperature control	adopt Japanese Mitsubishi PLC control system
	protection function	Automatic alert and breakdown feedback double protection of mechanical apparatus
Hydraulic system	Specification	proportion pressure controller changing direction quickly and softly
	human-machine electromotor	three phase a synchronism (380V,50HZ),11KW
	Hydraulic pump	adopt double-lamina pump
	Hydraulic valve	imported hydraulic components
	Vitta	high pressureVitta
	system pressure	60Kg/cm²
	cooling mode	Water-cooled
Pneumatic system	Specification	imported and famous brand pneumatic pressure
	Air pressure	0.6Mpa
	Air	0.7M 3 /min
	Valve	FESTO
Cooling system	Specification	mold,barrel,oil box adopt independentcooling waterway
	cooling medium	water
	Water flux	60L/min
	Water pressure	0.3MPa

Any question,please call me:
MOB&waspp: +8613773240086

---
