Granule Plastic Extrusion Production Line PP HDPE LDPE Pelletizer and Granulator Machine

Product Description

Granule Plastic Extrusion Production Line Pp Hdpe Ldpe Pelletizer And Granulator Machine
Product Description

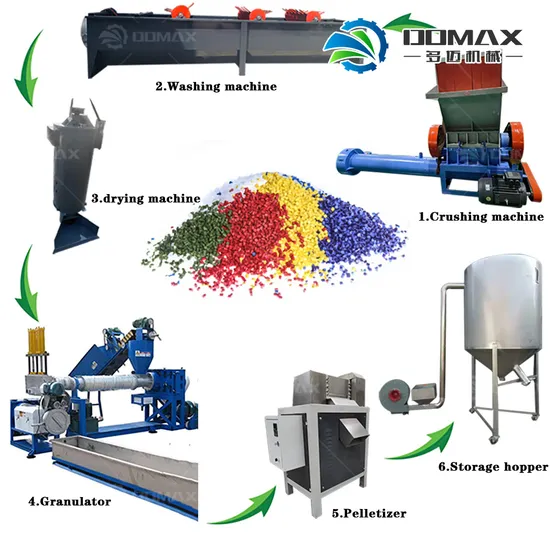

Introduction of plastic granuletor production line The recycling process of waste plastics is: recycling→crushing→cleaning→drying→granulation→extrusion molding (new products), and the granulation production line occupies an important part of the plastic recycling process. This set of production lines has been upgraded many times in practice, and has the characteristics of large output, low loss, low failure rate, easy operation, and low cost. The granulation production line has a variety of heating methods. The heating method can be designed according to the customer's production capacity and cost, and according to the customer's materials and output, provide customers with high-quality and reasonable production lines.

Product Parameters

Model	DM-125	DM-150	DM-180	DM-210	DM-240
Spindle diameter(mm)	125	145	175	/	/
Spindle speed(r/min)	50-70	40-60	40-60	40-60	40-60
Main motor power( KW)	22	30	37	45	55
Electromagnetic power (KW)	60	80	100	120	160
Overall dimensions(M)	2.6*0.7*0.7	3*0.7*0.8	3.2*0.7*0.8	3.5*0.8*0.9	3.8*0.9*1
Output (kg/h)	90-120	100-150	150-200	200-250	250-300

Product Application
Application of plastic granuletor production line PE film/LDPE film (greenhouse film, convenient bag, garbage film, beverage bottle, liner bag, etc.), PP woven bag/ton bag/space bag (old woven bag, packing bag, strapping rope, etc.), paper mill material, HDPE/PP/ABS and other hard materials, PVC material and other waste plastics. Output: 150-600KG/H (due to the different melting points and volumes of each material, please consult for specific output)
Heating method: electromagnetic heating, ceramic heating, etc.
Machine Picture Display
