High-Speed PS Material Cutting Machine for Packaging Efficiency

Product Description

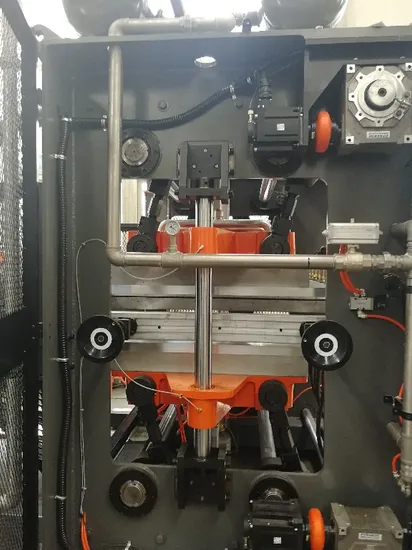

Introducing the PS Foam Automatic Thermoforming Machine: A Perfect Blend of Precision and Efficiency
This innovative system includes both a main forming machine and a cutting machine, delivering seamless performance.
Machine Features: Designed with a large forming and trimming area, this machine offers exceptional production efficiency with a maximum forming speed of just 2 seconds per cycle.
Boasting a high clamping force of 60 tons, it ensures the creation of premium quality products. It's suitable for vacuum forming, press forming, and more.
It adeptly handles the vacuum pressing process, providing versatility and precision.
Equipped with a trimming press that features automatic sheet feeding, precise position detecting, counting, and stacking capabilities.
Versatile in application, this machine accommodates various sheet materials: EPS, PVC, PP, BOPS, HIPS, PLA, PET, and more.
The entire unit benefits from high-precision servo systems, a user-friendly human-computer interface, and advanced PLC control for comprehensive automatic management.
Includes an in-line crusher, allowing crushed material to be efficiently transported either to a plastic recycling machine or an appointed location.
Model Parameters: HLRCH-1100/1300 and HLZCZ-1100
Max Forming Area: 1120x1295 mm² (44''x51'')
Max Forming Depth: 127 mm (5'')
Mould Clamp Force: 60 Tons
Dry Speed: Outstanding performance at 30 cycles per minute
Oven Length: 5300 mm, ensuring optimal heat distribution
Installed Power: An impressive 330 KW for robust operation
Installed Size (LxWxH): 14x2.2x2.5 meters
Weight: A solid 11 Tons, underscoring its durability
Max Efficiency Cutting Area: 1120x400 mm, tailored for high-speed operations2
Max Cutting Height: A generous 130 mm for versatile applications
Max Cutting Force: A powerful 35 Tons for efficient material processing
Dry Speed: Achieve remarkable dry speed at 150 cycles
Installed Power: 22 KW, providing energy-efficient performance
Installed Size (LxWxH): Compact and practical at 5x4.5x3.5 meters
Weight: Sturdy and reliable at 8 Tons

---
