US$27,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Water Plants/Garbage
Portable Harvester Type
Multi
Application Field
Agriculture
Amount of Work
1000-30002/H
Transport Package
Packing Suitable for Shipping
Production Capacity
50 Set/Month
Product Description

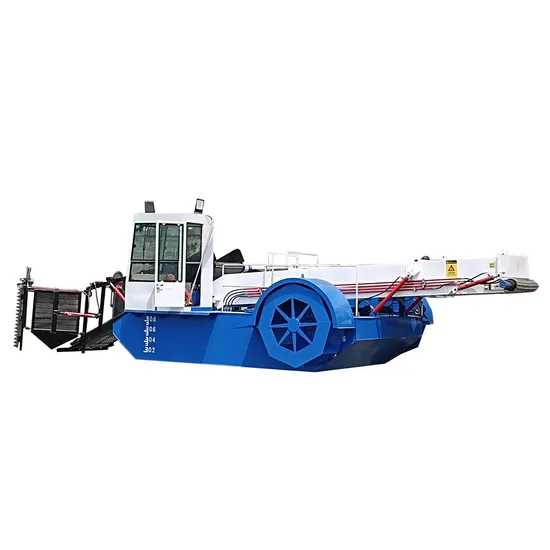

QY Customized High Quality River Harvester Clean Boat For Floating Trash/Garbage/Reed
Product Description
Model
| QY-GC-60
| QY-GC-85
| QY-GC-110
|
The total length of hull
| 10.8m
| 13.5m
| 16m
|
The hull is long
| 5m
| 7.5m
| 9m
|
Width of hull
| 3m
| 3m
| 3.4m
|
The hull is highly
| 1.0m
| 1.0m
| 1.0m
|
No load draft
| 0.3-0.4m
| 0.3-0.4m
| 0.3-0.4m
|
Load draught
| 0.4-0.6m
| 0.4-0.6m
| 0.4-0.6m
|
Collect the depth
| ≤1.8m
| ≤1.8m
| ≤2m
|
Collect the width
| ≤4m
| ≤2m
| ≤2.2m
|
Loading capacity
| 5m³
| 8-10m³
| 14-15m³
|
Power of engine
| 45kw
| 60kw
| 90kw
|
Sailing speed
| 5-7km/h
| 5-7km/h
| 5-20km/h
|
Work speed
| 3-5km/h
| 3-5km/h
| 3-5km/h
|
Endurance
| 12h
| 12h
| 12h
|
Drive mode
| Bilateral paddle wheel or propeller
| Bilateral paddle
| Bilateral paddle
|
Discharge height
| ≤3m
| ≤3m
| ≤4m
|
Amount of work
| 1000-3000m2/h
| 1000-4000m2/h
| 1000-6000m2/h
|
1. The ship can efficiently harvest water grass, only one person in the cab operation, can complete the gathering, collection, water filtration, transportation, storage, unloading, navigation and other work, has a powerful water grass harvesting function and water surface cleaning function,all kinds of floating garbage can be successfully salvaged.
2. The ship has fast speed, wide harvesting range, few harvesting dead corners, safe operation, wide seaworthiness area, easy operation and high degree of automation.
3. The front, middle and rear compartments of the ship are composed of high-strength stainless steel conveyor belts, which are equipped with stainless steel hooks.The average bearing capacity of each stainless steel hook is up to 1ton,which can be firmly and round hooked in water grass to prevent it from slipping into the water again. The conveyor belt bearing capacity,durable, easy to replace, water grass hook hanging ability.
4. The ship is equipped with a pair of transverse knives at the bottom of the harvest, a pair of vertical knives (wheels) on the left and right sides,and a set of mechanical collecting wheels, which can not only harvest weeds but also clean up floating objects on the water.
5. The boat is driven by double paddle wheels, so it will not be entangled by weeds or fishing nets in the process of driving. You can turn around in place to minimize the turning radius.
