Product Description
Product Description

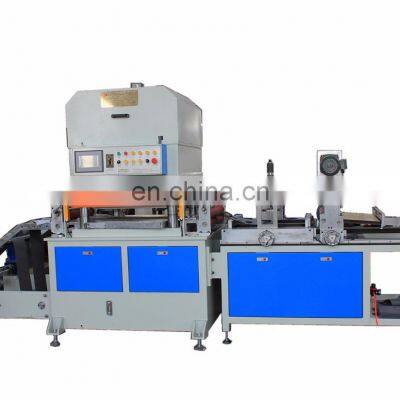

Automatic roll rubber gasket die cutting machine ModelPressure TonMax feeding width(mm)Die cutting areaPowerDP-40T40T650650*600mm7.5DP-50T50T850850*600mm10DP-80T80T10001000*800mm15 Features: 1. Four columns Fixing Settings System 2. Air Cold Pressing Settings System 3. Oil temperature cooling device and touch screen 4. High-precision abrasive steel plates can make the semi-die –cut and full- die -cut 5. For purchasing the device including (Hot Air Leveling,EPC&LPC opposite sides,Automatic corrective control,Light sensor or CCD printed material counterpoint cutter). Application: Die cutting Forming of the materials for Photoelectric display screen(Protective film,Bright Enhancement Film,Polarizer,Diffuser,Current-carrying plate etc.),Printed circuit board,Precision screen. Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable Applies to punch electronic materials such as aluminum foil ,PET, protective film , Mylar through cutting or kiss cutting, all kinds of precision components of stamping forming PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection Configuration Data l Material Pulling Servo Motor 1 Sets l Normal Geared motors + encoder for mold plate height adjustment 1 set cutting blade motor 1 setl Material Pulling Roller (PU material) 2 Sets Made in China l PLC 1 Set Made in Japan Mitsubishi l Touch Screen 1 Set Made in Taiwan l Photoelectric Safety 2 Set Made in Taiwan there total 4 pcs , yellow color front 2 pcs , back side 2 pcsl Automatic pressure regulating motor 1 Set Made in Panasonic l Main Motor(7.5KW-4) 1 Set Made in QL TaiWan l Oil Pump 1 Set Made in Taiwan Danxin l Solenoid Valve ,Cooler 1 group Made in Taiwan Danxin l Hydro-cylinder 1 Set l Feeding System 1 Set 3 inch air-shaft + Aluminum roller , max 650mm working widthl guillotine System 1Set max width : 650mml Feeding platform with roller 1Set l Mold And Screw Fixed Device 1 Set please see picture belowl Automatic adjustment Press Fit Route Device 1 Set
>>
