Intelligent AC Zinc Oxide Arrester Characteristic Tester For Electrification or laboratory

Product Description

Intelligent AC Zinc Oxide Arrester Characteristic Tester For Electrification or laboratory
Introduction

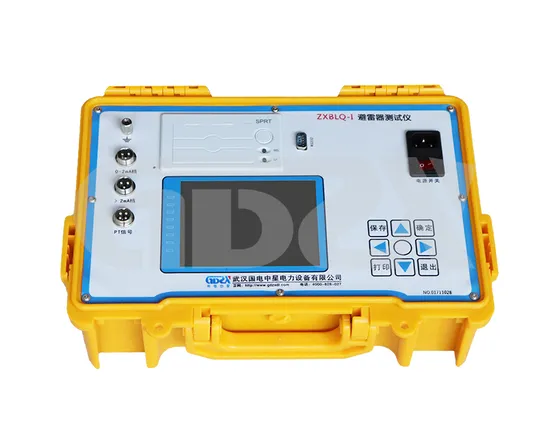

ZXBLQ-I Zinc Oxide Arrester Tester is a special instrument used to test the electrical performance of arresters. The instrument is suitable for live or power failure detection of arresters of various voltage levels, so as to timely detect the internal insulation damp and valve aging and other dangerous defects.
Features
1. 5.7 "320 × 240 LCD, high-speed thermal printer; graphic display, intuitive interface, easy to operate and use.
2. It is applicable to live arrester, power failure or laboratory.
3. The current and voltage sensors are completely isolated, safe and reliable. A, B, C three-phase arrester can be stored as a group of test data.
4. The instrument can test continuously, display voltage current curve, and print data and curve quickly.
5. The internal configuration memory can store 200 groups of test data when power down.
6. With RS232 communication interface, the test data can be exported through the upper computer.
7. High speed sampling frequency, advanced digital signal processing technology, strong anti-interference performance, high accuracy of measurement results.
8. It adopts dustproof, waterproof and anticorrosive engineering plastic sealing box, which is small in volume, light in weight and easy to carry.
Technical parameters

1. Working power supply:	AC220V/50Hz
2. Measurement range:	Leakage current: 0-10mA;Voltage: 30-100v.
3. Measurement accuracy:	Current: total current > 100μa, ± 5% reading ± 1 word;Voltage: ± 2% reading ± 1 word when reference voltage signal > 30V;
4. Measurement parameters:	Leakage current full current waveform, fundamental effective value and peak value.The fundamental effective value of the resistive component of the leakage current and the effective value of the third, fifth and seventh times of the leakage current are analyzed.Leakage current resistance component peak value: positive peak Ir + negative peak Ir -.Capacitive current fundamental wave, full voltage, full current phase angle difference.Voltage RMS.Power consumption of arrester.
5. Voltage reference signal sampling mode:	20m (expandable)
6.Instrument size:	360*260*140mm
7. Instrument weight:	5kg

Test cases
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user's questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others. Warranty* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.* Our products are guaranteed with one year warranty and life-long tech support.* Provide solutions within 24 hours when there is problems feedback from customer.
PACKING AND SHIPPING
(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.(5)After shipping, we will remain attentive till goods well received. If you need detailed specification, please feel free to contact us.

---
