US$544.00-598.00
|
3 Sets
(MOQ)
|
Basic Info.
Face Milling Capacity
63mm
End Milling Capacity
20mm
Transport Package
Wooden Case
Production Capacity
150-200 Sets /Month
Product Description
Features

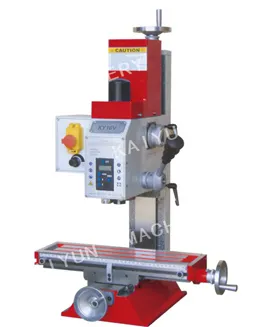

1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.
| Specification |
MODEL
| KY16V
|
Drilling capacity
| 16mm
|
Face milling capacity
| 63mm
|
End milling capacity
| 20mm
|
Spindle taper
| MT2
|
Sleeve travel
| 50mm
|
Low speed stage
| 50-1125 rpm |
High speed stage
| 100-2250 rpm
|
Head rotation
| ±90°
|
Table size
| 400x120mm
|
X-axis travel
| 220mm
|
Y-axis travel
| 160mm
|
Z-axis travel
| 210mm
|
T-slot
| 10mm |
Load of table
| 55 kg
|
Motor
| 600W
|
Packing size
| 500x450x760mm
|
Net weight
| 60kg
|
| Standard Accessories |
Speed display
| 1 set |
Depth ruler
| 1 set |
Drill chuck 3-16mm
| 1 set |
Arbor MT2/B16, M10
| 1 set |
| Optional Accessories |
Stand & chip tray
|
Keyless drill chuck 3-16mm
|
ER25/6pcs collet chuck (4-16mm)
|
2-way angle vise-50mm
|
End mill 7pcs (4-16mm)
|
58pcs of clamping kits/M10*11.7mm
|
X-axis Power feed
|
Packing & Delivery
