XCMG Slm2600s 2.6 Cubic Mobile Self Loading Concrete Truck Mixer Price List

Product Description

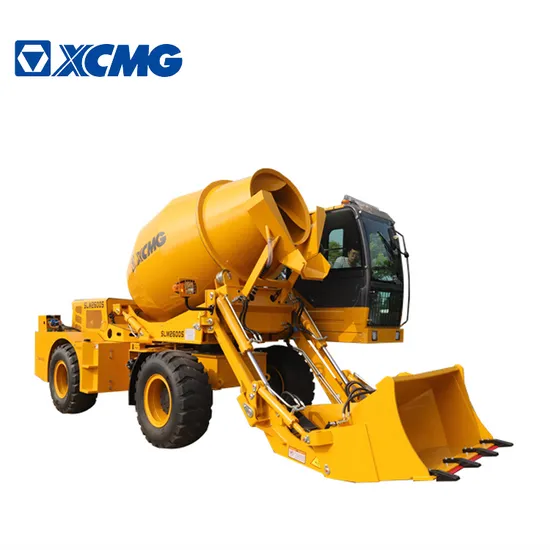

XCMG SLM2600S 2.6 Cubic Mobile Self Loading Concrete Truck Mixer
Product Description
Multi-function integration Self loading concrete mixer is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.
Hydrostatic transmission
The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.

Weighing system
The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.

* Output per lot: 2.6 cubic metres
Drum rotation: discharge port height 1.65 M, horizontal rotation 270 degrees, tank can be raised and lowered
* ENGINE: Yuchai, diesel, water cooled, 4 cylinder, 2200 rpm, rated power 77.3KW
* Drive mode: The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive
* SPEED: dual altitude, low speed 0-25 kph, high speed 0-40 kph
* Driver's seat: Widen luxurious cab, anti-rollover, anti-falling object type
* Hydraulic System: Open type oil, two gear pumps to participate in the work
* JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
* Clay Groove: equipped with two 150 cm detachable chute to increase discharge length
* Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine
* BRAKES: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
* Steering: Hydraulic articulated steering
* Fuel tank / Water tank: 1 * 600 l water tank, 120 l diesel fuel tank, 120 l hydraulic fuel tank
* Others: Q345 manganese steel frame, luxury cab, driving impact, cement bucket
Product Parameters

Model	SLM2600S
CAPACITY	4 batches/h or 10.4 cubic/hour
Weight	7000KG
Bucket(hydraulic gate)	2.6 cubic
TIRE(steel wire high pressure vacuum tire)	12R-22.5
Power System	24V
CLIMB	40°
Turning radius	2800mm

Product Picture

Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
