Basic Info.
Model NO.
JY-DDJFJN-13 / 23-X
Number of Reflective Surfaces
Double-Side
Certification
CE, RoHS, TUV
Battery Type
Ni-MH Battery
Color Option
Red, Yellow, Green, White, Blue
Major Material
Aluminum Alloy
Working Mode
Steady Light or Flashing (Optional)
Transport Package
20 PCS/Carton
Specification
114*110*70 mm
Production Capacity
40000/Month
Product Description
Product Parameters
Product Specification | Remark |

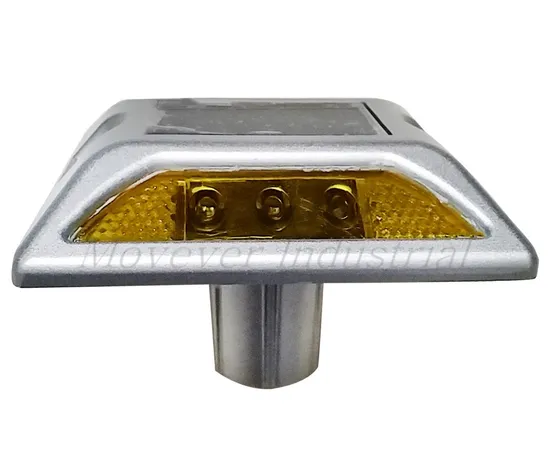

Description | Solar Road Stud (with stem) | 2 size |
Model number | JY-DDJFJ-13 / 23-X (New:JY-DDJFJN-13 / 23-X) |
Product dimension | 129*117*77 mm (New: 114*110*70 mm ) |
Power | Material | Mono-crystalline silicon solar cell,100mA |
Voltage | 2V |
Output max consumption | 0.2W |
Battery | Hi-Temp NI-MH battery,1.2V,600 mAh |
LED | Quantity | 2 / 3 pcs per side |
Color | Red/white/yellow/green/blue |
Frequency | 2Hz±20% flash or steady light |
Visible Distance | >800 m |
Working Time | 100h after fully charged (flash) |
Light Intensity | 6000~10000 mcd |
Starting Light Intensity | <500 Lux |
Main Material | Aluminum alloy |
Lifespan | 3 Year |
Working Temperature | -20-60 ºC |
Resist Compression | Up to 15 ton (statics) |
Ingress Protection | IP67 |
Net Weight | 600 / 450 g |
Packing | 20 pcs/carton / 66 x 29 x 21 cm |
Detailed Photos Production & Testing
Packaging & Shipping
Our Advantages Professional R & D team, High efficiency management system, More than 9 years solid manufacturing experiences, Experienced process standard to different countries (North America, Europe, Australia, Africa,etc.) Company Profile Movever Industrial located in Shenzhen, China, which is specializing in roadway safety products & luminous lighting product design service and manufacturing.
We keep learning forever, moving forever, Let's serve for you to be a comprehensive traffic safety, LED lighting solution provider.
we have below products range:
>Traffic road stud >Traffic warning / flashing light >Traffic signage >Traffic signal light >Traffic controller >Traffic reflective material >Mobile traffic signal light >LED street light
Management system Production control
Quality control
>>
