3 Layer Oscillating IBC Die 1800mm Film Blowing Machine

US$62,295.10-295,082.00 1 Piece (MOQ)

Basic Info.

Model NO.
FMI3-1800
Maximum Folding Width of Film
2000mm
Screw Diameter
75mm
Automation
Automatic & Manual
Computerized
Computerized
Machine Weight
20t
Certification
CE, ISO9001:2008
Machine Size
L*W*H: 6.5m * 3.25m * 8.5m
Transport Package
Plastic Film for Container Shipment
Specification
3 layers
Trademark
Xiongqiu Plastic Machinery Co., Ltd.
Origin
Foshan, Guangdong Province
HS Code
8477300000

Product Description

Widely used in producing base of composite membrane,liquid film, contractive film. protective film, cable film, macromolecule adhesive film, multi-functional industrial film products.
The tractor adopts horizontal swing rotary to replaces die rotary and simplifies the die structure. It soloves problems of leakage, poor sealing and maintenance etc. arising from die rotary which ensures the good film smoothness.
The IBC internal bubble cooling system makes an improvement of film quality and transparency as well as the output.
High precision fold diameter control system adjust the air current through controling the fan speed and decrease the error of the film bubble diameter.
EPS corrective system and the automatic corrective leading promise the film's smoothness.
Model FMI3-1300 FMI-1600 FMI-1800 FMI-2200
suitable material LDPE / LLDPE / HDPE
thickness 0.02--0.20mm
film width 1100mm 1400mm 1600mm 2000mm
max output 80kgs/hr 105kgs/hr 150kgs/hr 215kgs/hr

Extruder
screw diameter Φ45mm*3 Φ55mm*3 Φ65mm*3 Φ75mm*3
L/D ratio 30:1
temp. controller 15 zone 15 zone 16 zone 16 zone
barrel cooling 120w*4 120w*4 120w*6 250w*6
driving motor 11kw*3 18.5kw*3 22kw*3 30kw*3

Die head
die diameter Φ250mm Φ350mm Φ450mm Φ630mm
air ring diameter Φ350mm Φ450mm Φ550mm Φ900mm
die structure Spiral mandrel die chrome plated surface 40Cr
cooling fan 2.2kw 3kw 4kw 5.5kw

Take up part
take up width 1300mm 1600mm 1800mm 2200mm
effective width 1100mm 1400mm 1600mm 2000mm
take up motor 1.5kw 1.5kw 2.2kw 3.7kw
rotary angel ±360°
corrective system auto corrective oriented system

Winder
winder width 1300mm 1600mm 1800mm 2200mm
effective width 1100mm 1400mm 1600mm 2000mm
winder motor 1.5kw 1.5kw 2.2kw 2.2kw
ooptional equipment auto-loader device, film surface treater, air compressor,, fast change net, auto rewinder, double wind air ring, IBC inner cooling die head

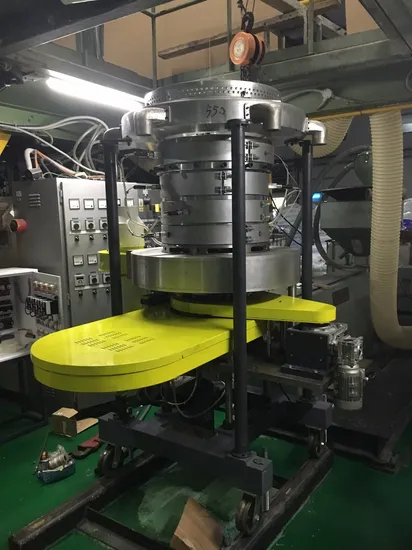

PICTURES FOR REFERENCE:
