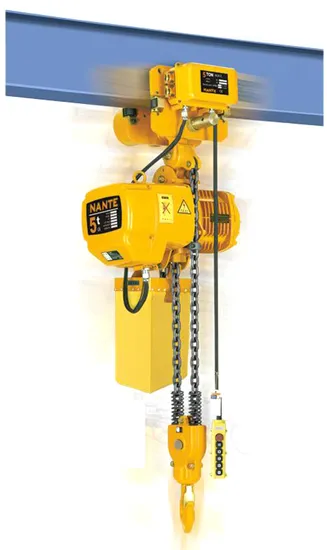

5 Ton 5000kg Lever Electric Lifting Chain Hoist

Product Description

5 Ton 5000kg Lever Electric Lifting Chain Hoist
Electric Wire Rope Hoist-Main Structure:
Reducer, running organizations, roller equipment, hook devices, couplings, flexible cable current into the device and stopper.
Motor is with cone rotor motors, set the power and braking force in one.

Electric Wire Rope Hoist-Operating Conditions:
1.Altitude does not exceed 1000m
2.Ambient air temperature is -20 ° C ~ +40 ° C
3.Ambient air humidity is not more than 85% (at 25 ° C)
4.Power: three-phase AC, 380V, 50HZ. Motor terminal voltage fluctuation ±10%
5.The electric hoist is generally installed indoors. When installing outdoors, a rain cover should be added.
When the above environmental conditions are not met, special orders are made according to non-standard products.
Electric Chain Hoist-Introduction:
1.Shell:
Made of light aluminumalloy, the cooling fin is specially designedto ensure quick heat dissipation with therate up to 40% and continuous service.The integral enclosed structure isapplicable to chemical plant and electroplated factory
2.Side magnetic baking device:
atest designof magnetic orce generator, it allows instantbrake as soon as the power off.
3.Support frame:
Consist of two sturdy steel plates
4.Transformer:
24V/36V/48V
Used to prohibit unexected accident,for example, Electric leakage while raining.
5.Electromagnetic contractor:
Long working life.
6.Mechanical braker:
Dual braking systemto be saft and reliable.
7.Chain:
Chinese Chain Or Imported FEC80 ultra heat-treatable alloy aluminum, It can used in poor environments such as raining, sea water and chemical.
8.Reverse protecting device:
special cable solution protect control wire system.
9.Hook:
hot forging with perfect strength,hard to break. The lower hook is ensured by 360 degree rotation with safety tongue piece.
10.Push button:
Waterproof, lifght and durable.
Technical Parameter

Model	NCH
	0.5-01S	01-01S	01-02S	1.5-01S	02-01S	02-02S	2.5-01S	03-01S	03-02S	03-03S	05-02S
Capacity(Ton)	0.5	1	1	1.5	2	2	2.5	3	3	3	5
Lifting speed(m/min)	7.2	6.8	3.6	8.8	6.6	3.4	5.6	5.6	3.3	2.2	2.8
Motor Power(kw)	1.1	1.5	1.1	3	3	1.5	3	3	3	1.5	3
Net Weight(kg)	47	65	53	108	108	73	115	115	131	85	145
Model	NCH
	0.5-01D	01-01D	01-02D	1.5-01D	02-01D	02-02D	2.5-01D	03-01D	03-02D	03-03D	05-02D
Capacity(Ton)	0.5	1	1	1.5	2	2	2.5	3	3	3	5
Lifting speed(m/min)	7.2/2.4	6.9/2.3	3.6/1.2	8.8/2.9	6.6/2.2	3.3/1.1	5.6/1.8	5.6/1.8	3.3/1.1	2.2/0.8	2.8/0.9
Motor Power(kw)	1.1/0.37	1.8/0.6	1.1/0.37	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0
Net Weight(kg)	54	75	60	128	128	83	135	135	151	95	165
Other Specification for Single and Double Speed Electric Chain Hoist
Rotation speed(r/min)	1440
Insulation Grade	F class
Traveling speed(m/min)	Slow: 11m/min & Fast: 21m/min
Power Supply	3-Phase 380v 50Hz
Control Voltage	24V 36V 48V
NO.of Load Chain	1	1	2	1	1	2	1	1	2	3	2
Spec.of load Chain	Φ6.3	Φ7.1	Φ6.3	Φ10.0	Φ10.0	Φ7.1	Φ11.2	Φ11.2	Φ10.0	Φ7.1	Φ11.2
I-Beam(mm)	75-125	75-178	75-178	82-178	82-178	82-178	100-178	100-178	100-178	100-178	112-178

Drawing

---
